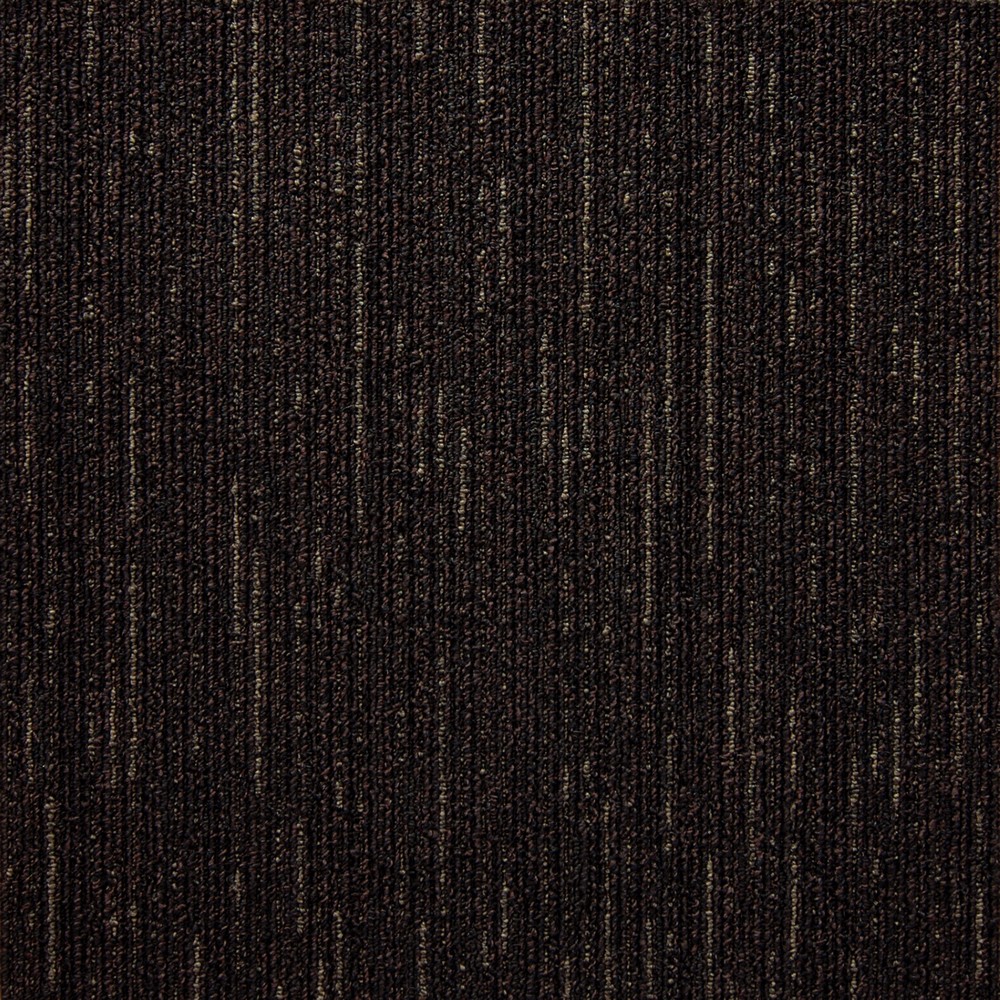

Surbiton E704 Burnt Toffee

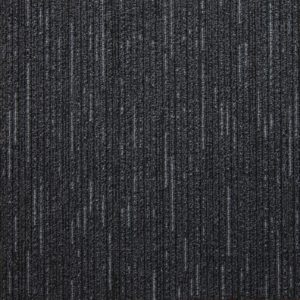

Surbiton E703 Slate

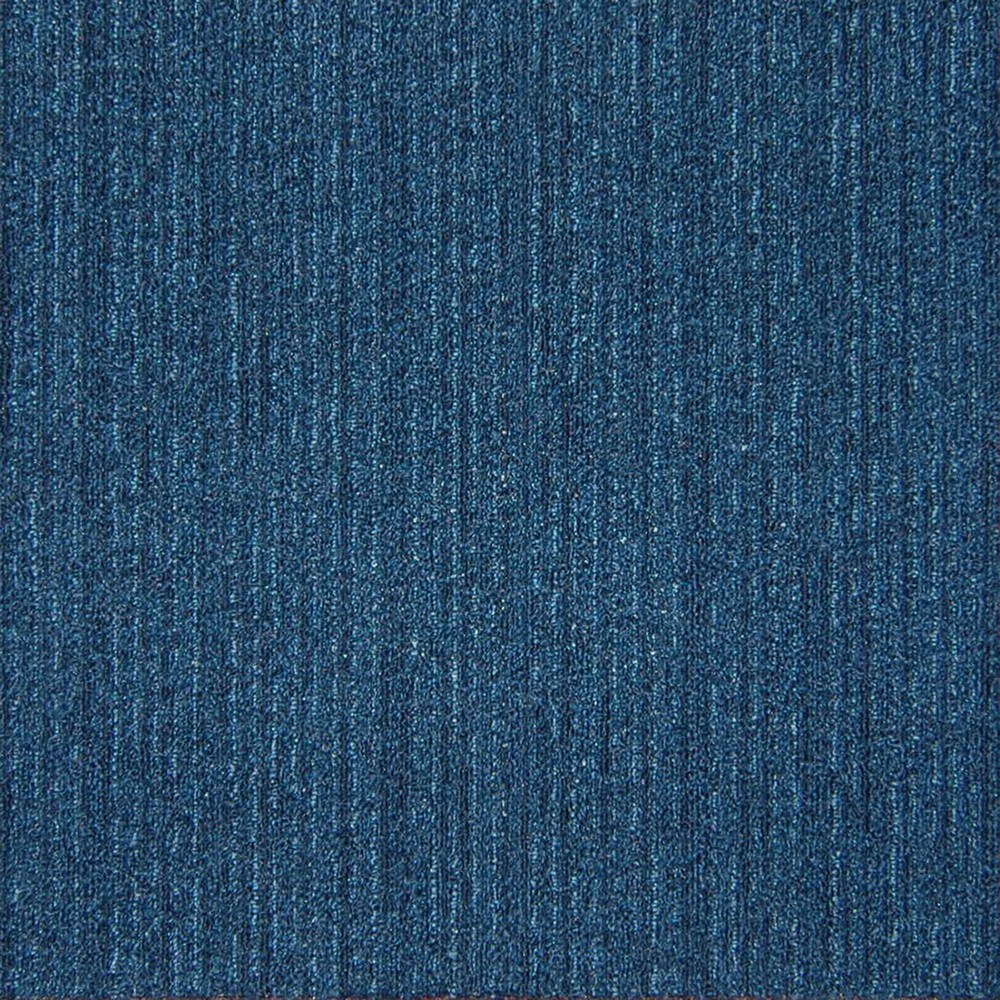

Surbiton E706 Sapphire

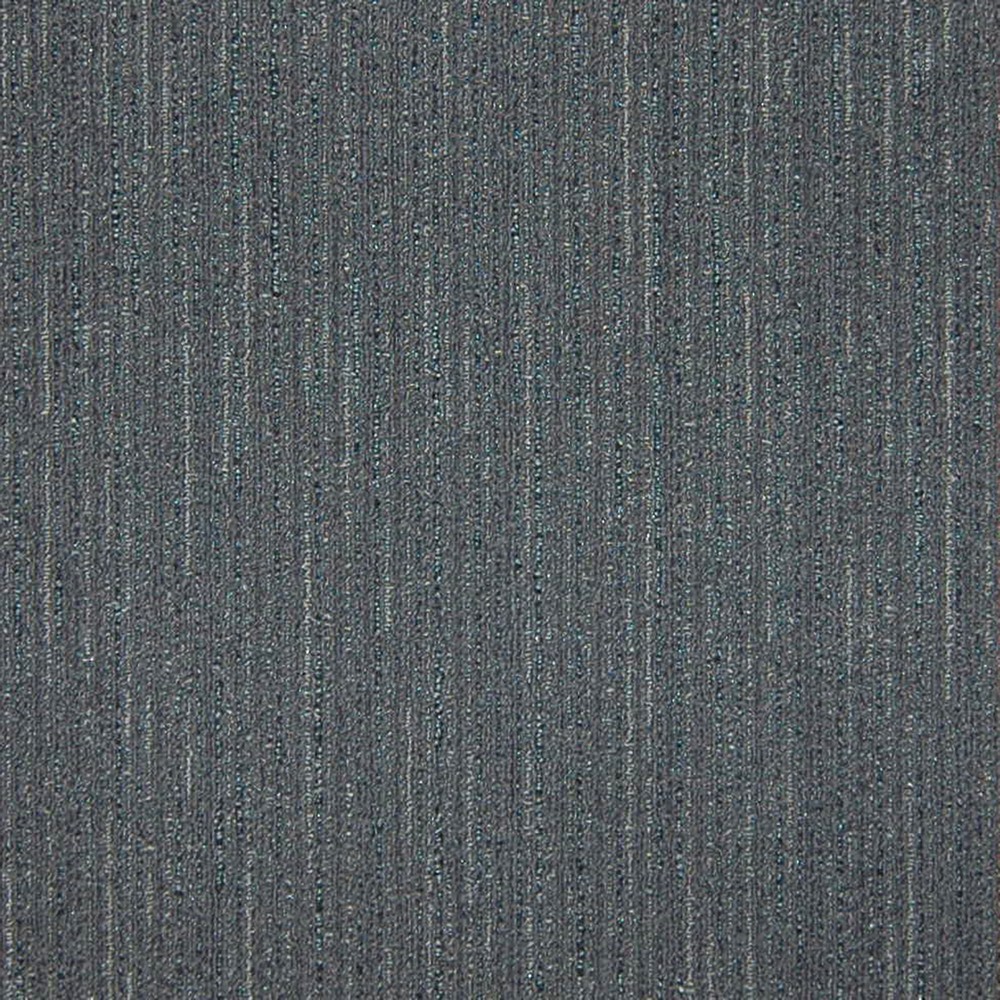

Surbiton E707 New Steel
CONSTRUCTION Tufted multi-level loop Pile
PILE FIBRE 100% Recycled Nylon 6
DYED METHOD Solution Dyed
TUFTING GAUGE 1/10” Inch
PILE WEIGHT 770gm/sqm (22.7oz/yd2) ±5%
PILE HEIGHT 4.5mm(0.177inch)
PRIMARY BACKING Non- Woven Polyester
BACKING STRUCTURE Soft Back Deluxe. Acoustic Cushion 4mm
BACKING OPTIONS AVAILABLE Soft Back Lite
TILE SIZE 500mm x 500mm
CASTOR CHAIR RATING BS EN 985, Passes >2.4 Continuous use (Under-chair mats recommended)
THERMAL RESISTANCE R Value = 0.15(m2K/W)
ELECTROSTATIC PROPERTIES CNS 13595 10 ≤2.0KV 20% R.H.at 70 F
PERFORMANCE
WEAR CLASSIFICATION
ACCS Contract Extra Heavy Duty
Label No15056 & Label No 15093
ENVIRONMENTAL CERTIFICATION
ACCS ECS Level 4
GREEN STAR LEVEL A
Min 7 Credit points
NATIONAL DISABILITY
Compliant
FLAMMABILITY
HOT METAL NUT
BS4790: Hot Metal Nut, Method 1
Passs
RADIANT PANEL TEST
ASTM E648, Class 1
SMOKE DENSITY
246 %. min
RADIANT HEAT SOURCE
AS ISO 9239.1.2003 CHF 5.2K/W/
M2
ACOUSTIC BEHAVIOUR
ACOUSTIC WEIGHTED ABSORPTION COEFFICIENT
EN ISO 34 and EN ISO 11654:
αw=0.41(H)
WARRANTY
WEAR WARRANTY
15 Years Limited Wear Warranty
Ultraviolet resistance
Anti-Static
Reduced flammability
Wear resistance
Environmental
Long life-span
Dimensional stability
Anti-slip
Passed Various Tests
