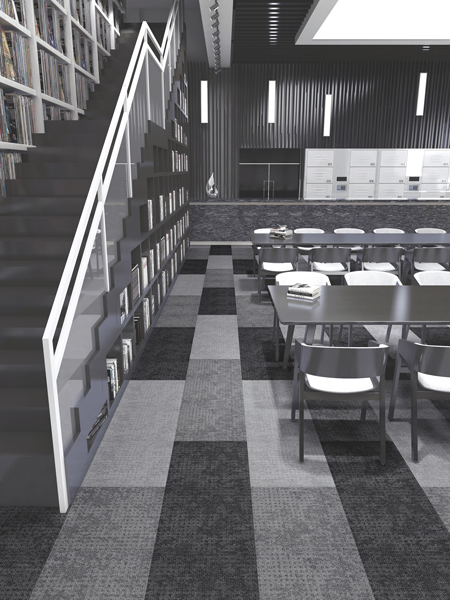

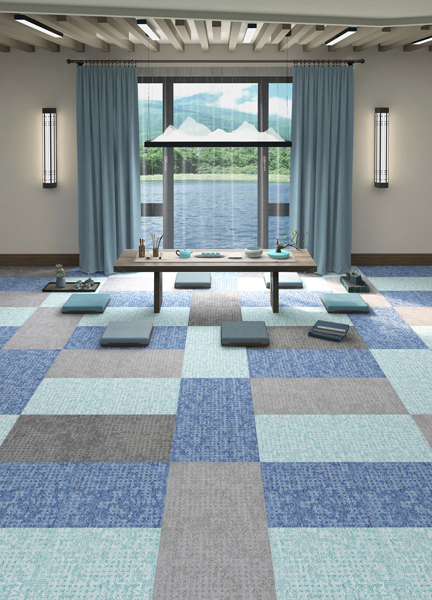

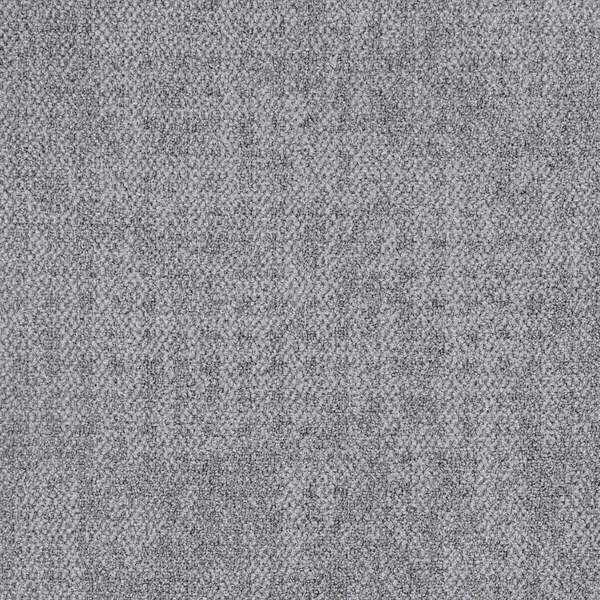

Pane F90101

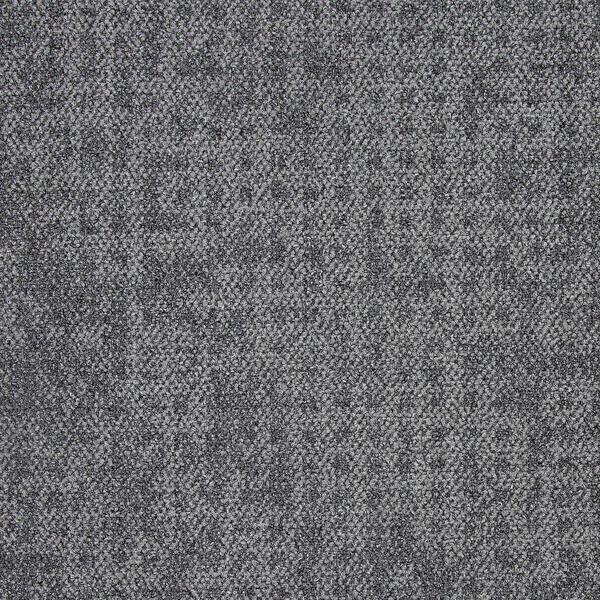

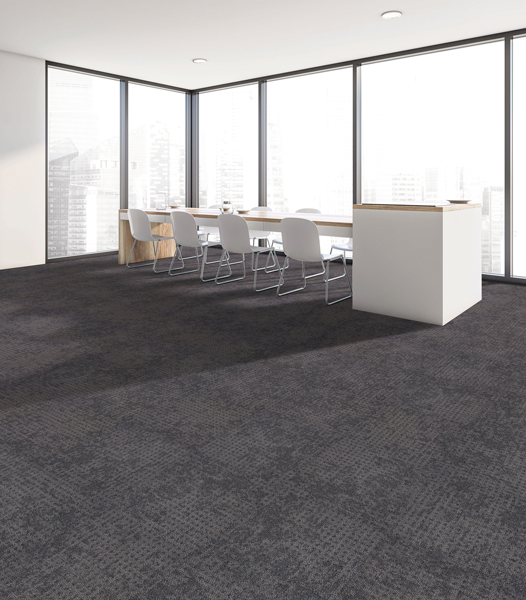

Pane F90102

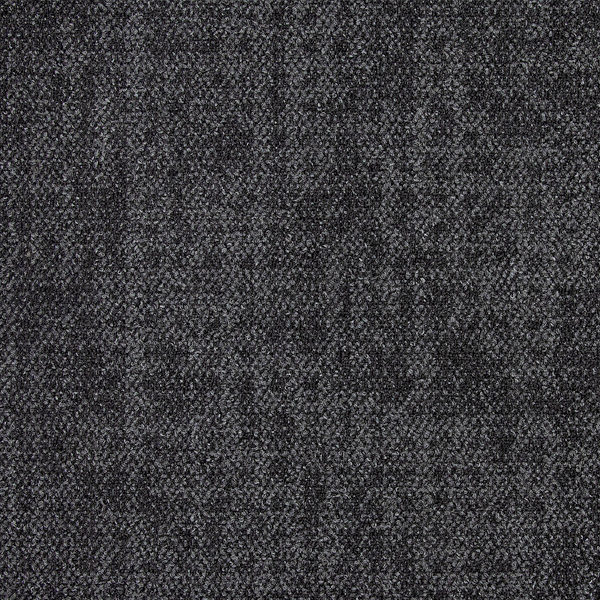

Pane F90103

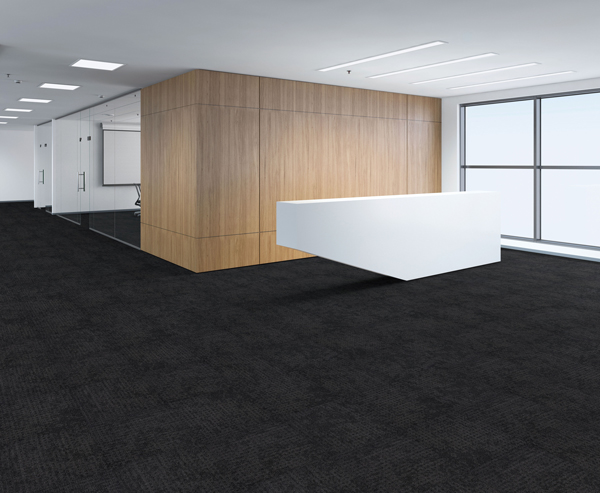

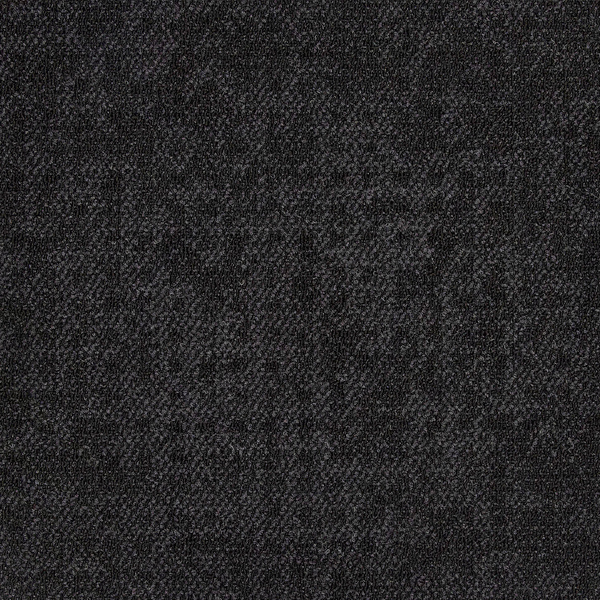

Pane F90104

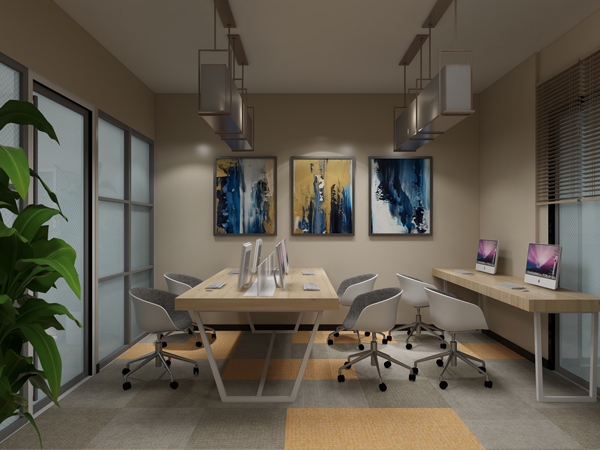

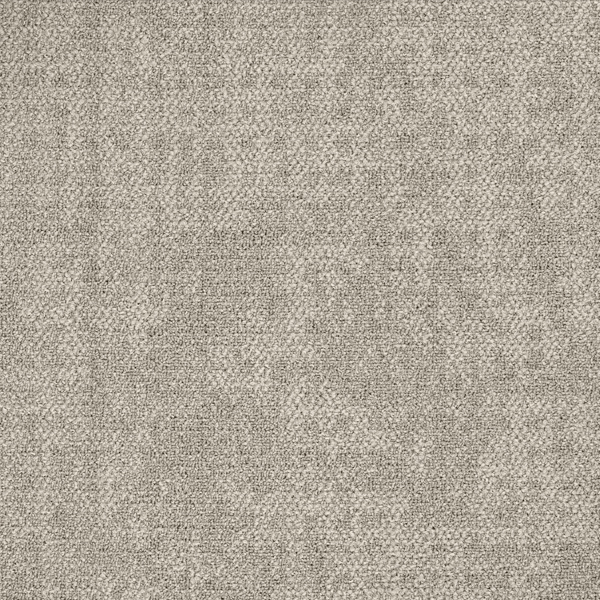

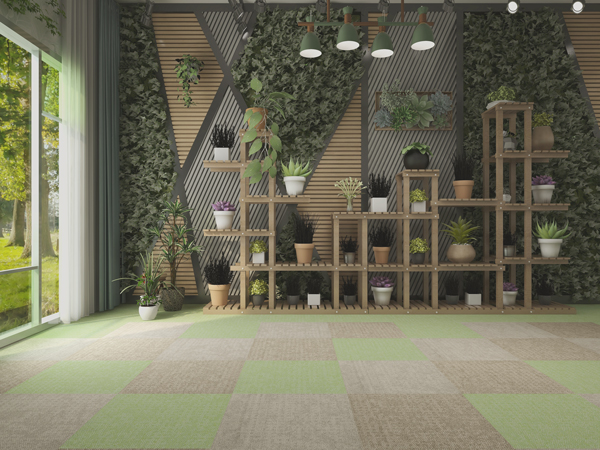

Pane F90105

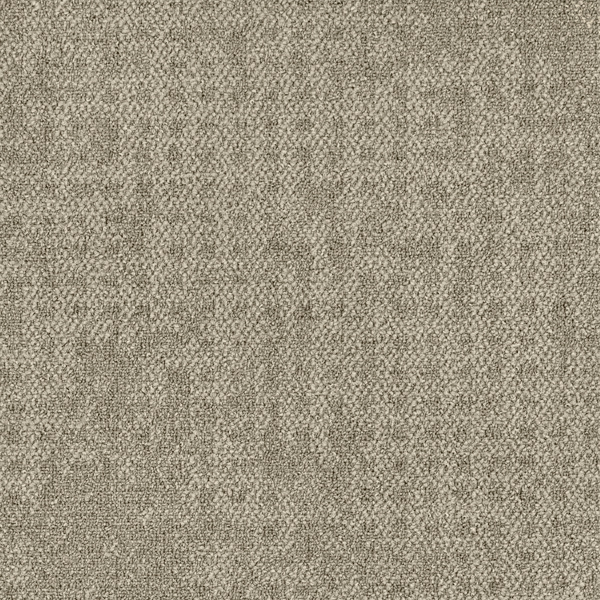

Pane F90106

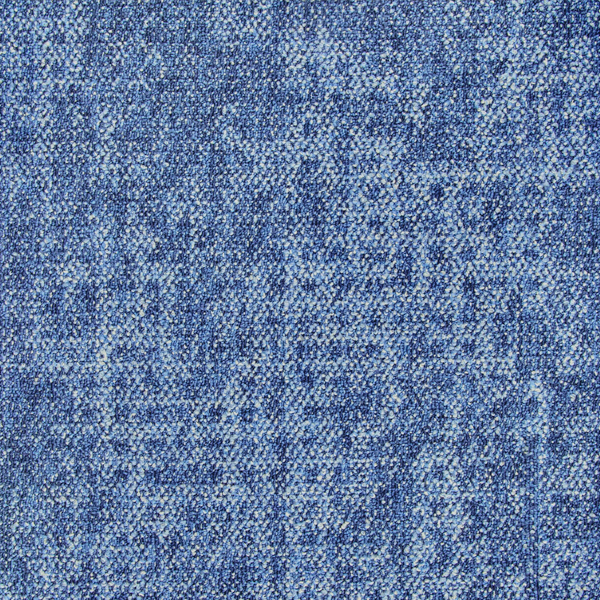

Pane F90107

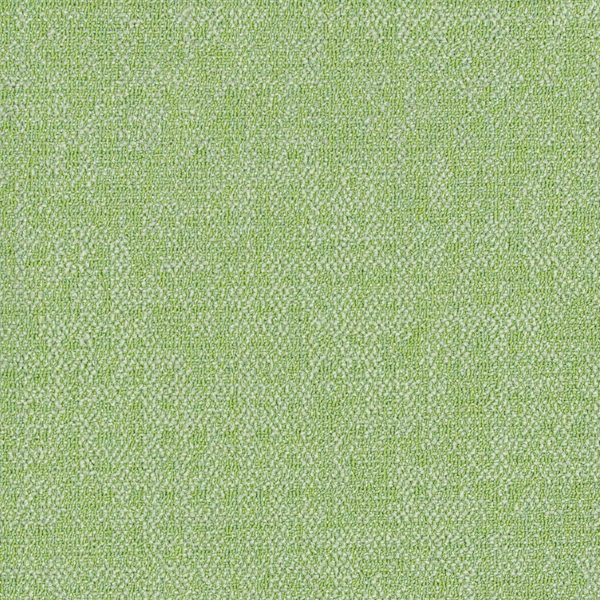

Pane F90108

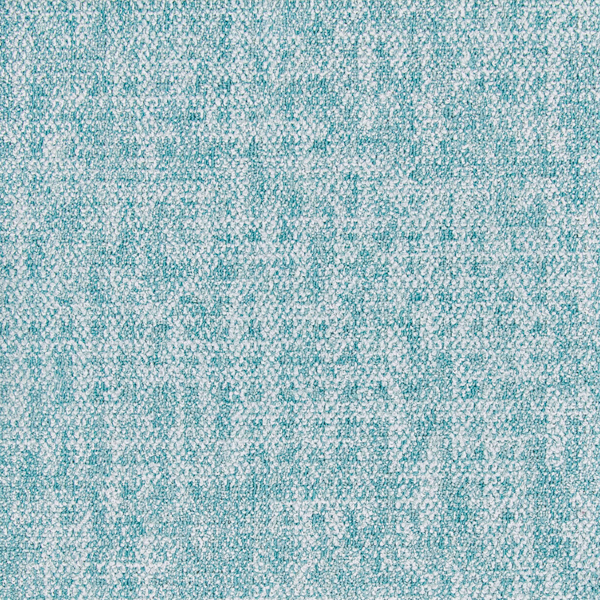

Pane F90109

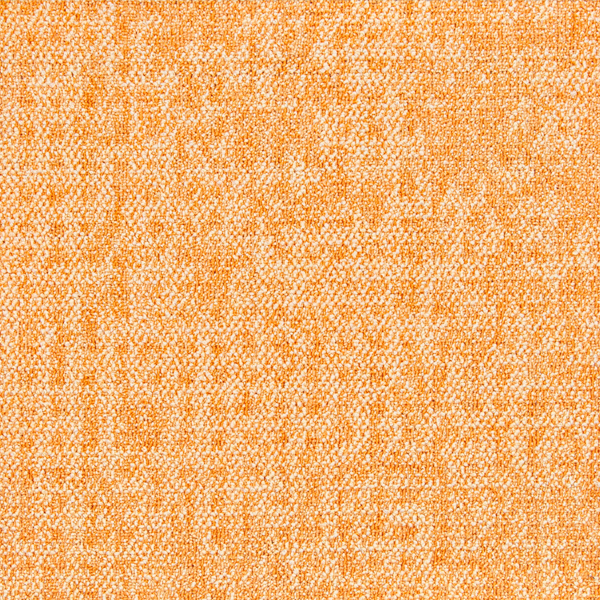

Pane F90110
CONSTRUCTION Tufted multi-level loop Pile
PILE FIBRE 100% Recyclable Universal Nylon 6
DYED METHOD Solution Dyed
TUFTING GAUGE 1/12"
PILE WEIGHT 610gm/sqm (18oz/yd2) ±5%
PILE HEIGHT 3.5 - 5.5mm
PRIMARY BACKING Non- Woven Polyester
BACKING STRUCTURE SoftBack Lite
BACKING OPTIONS AVAILABLE Softback Standard / SoftBack Delux
TILE SIZE 500mm x 500mm
CASTOR CHAIR RATING BS EN 985, Passes >2.4 Continuous use (Under-chair mats recommended)
THERMAL RESISTANCE R Value = 0.08(m2K/W)
ELECTROSTATIC PROPERTIES CNS 13595 10=<2.0kv20% R.H. @70F
PERFORMANCE
WEAR CLASSIFICATION
Contract extra heavy duty
ENVIRONMENTAL CERTIFICATION
Declare
NATIONAL DISABILITY
Compliant
FLAMMABILITY
RADIANCE PANEL TEST
AS ISO 9239.1-2003
CHF Value 6.1kW/m2
HF-30 Value 7.30kW/m2
SMOKE DENSITY
AS IO 9239.1-2003
Smoke value 13% Min.
ACOUSTIC BEHAVIOR
ACOUSTIC WEIGHTED ABSORPTION COEFFICIENT
EN ISO 34 and EN ISO 11654: aw=0.41(H)
SLIP RESISTANCE
SLIP RESISTANCE
P5
WARRANTY
WEAR WARRANTY
15 Year Limited Wear Warranty
Ultraviolet resistance
Anti-Static
Reduced flammability
Wear resistance
Environmental
Long life-span
Dimensional stability
Anti-slip
Passed Various Tests
ASHLAR
QUARTER TURN
