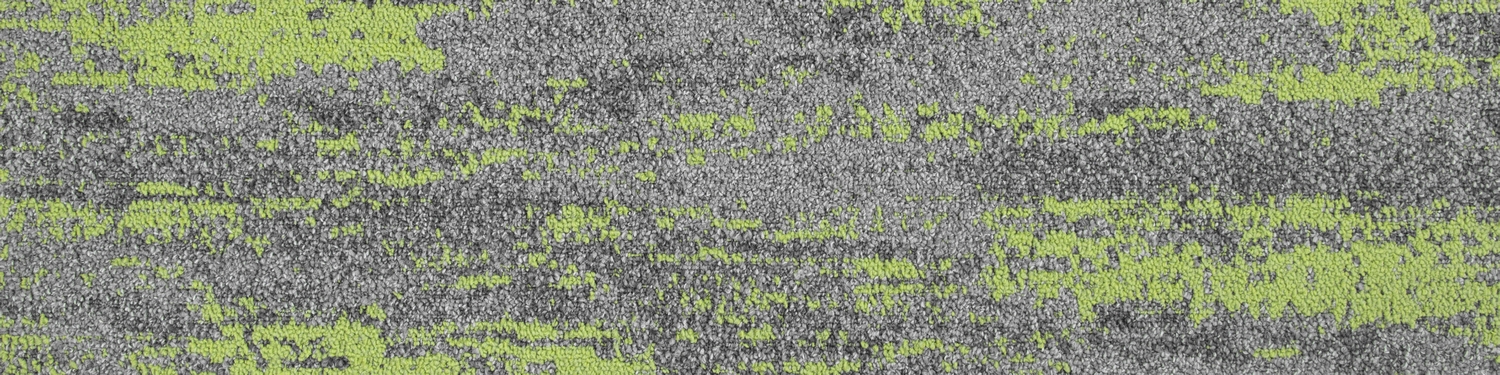

Coral Reef C 86801A

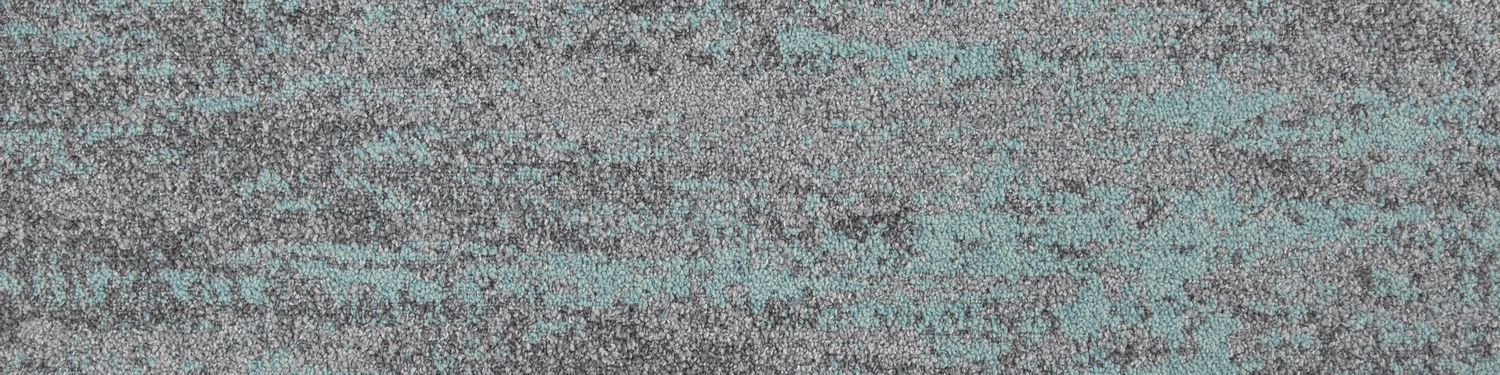

Coral Reef C 86802A

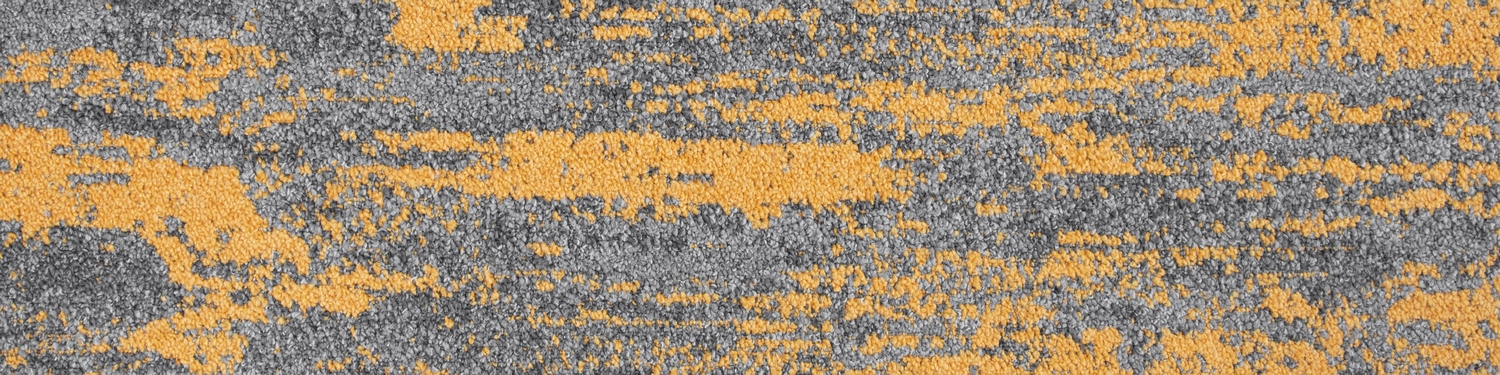

Coral Reef C 86803A

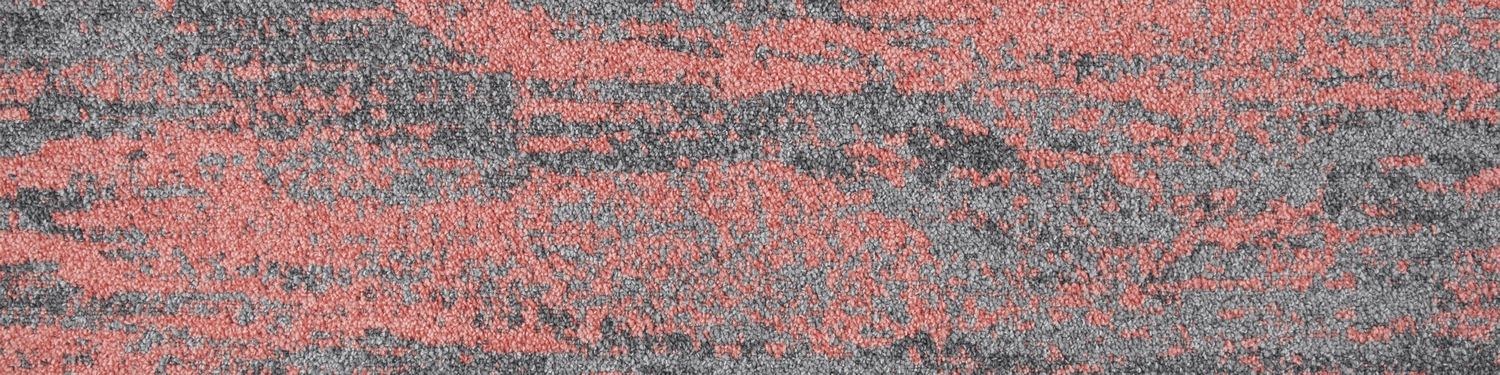

Coral Reef C 86804A

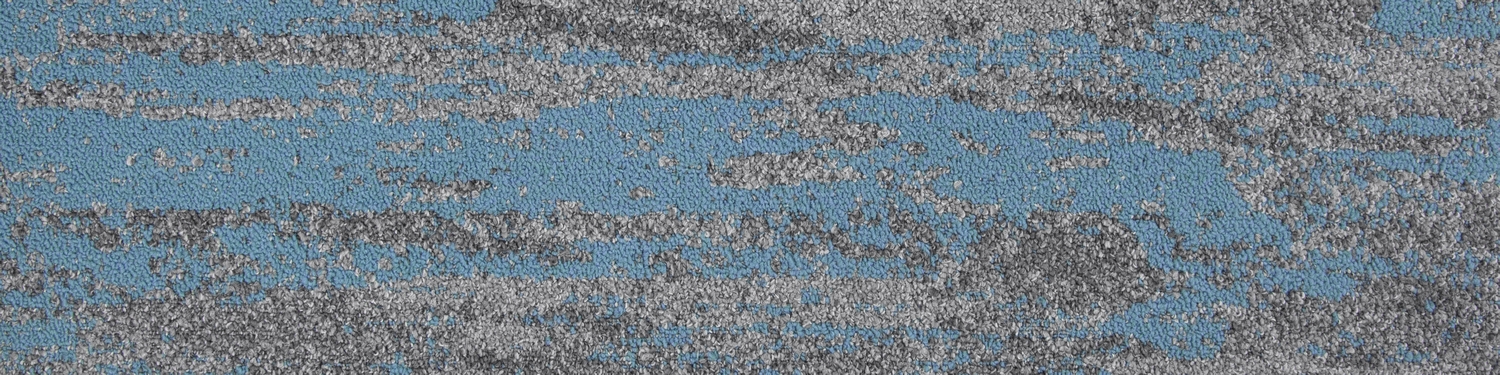

Coral Reef C 86805A

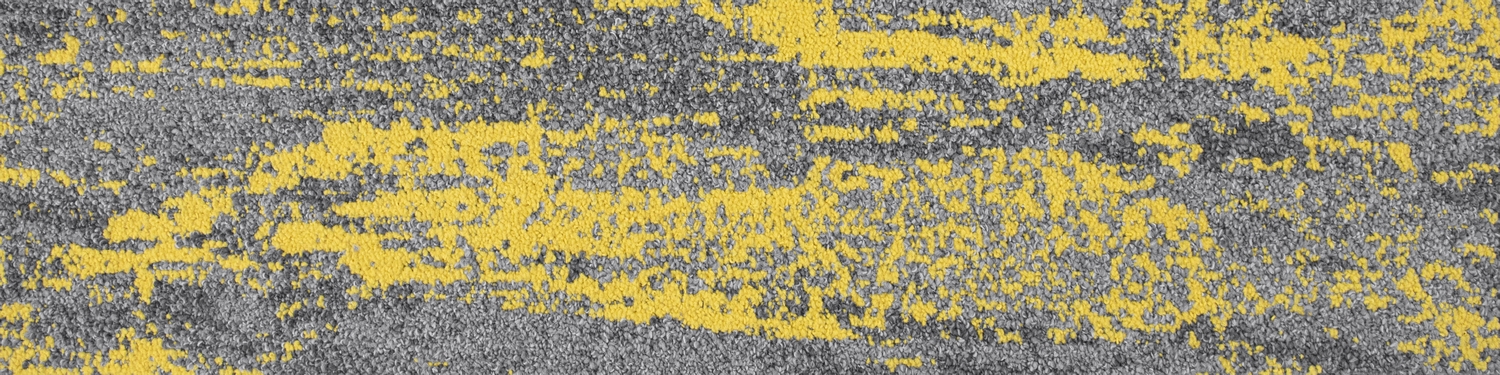

Coral Reef C 86806A

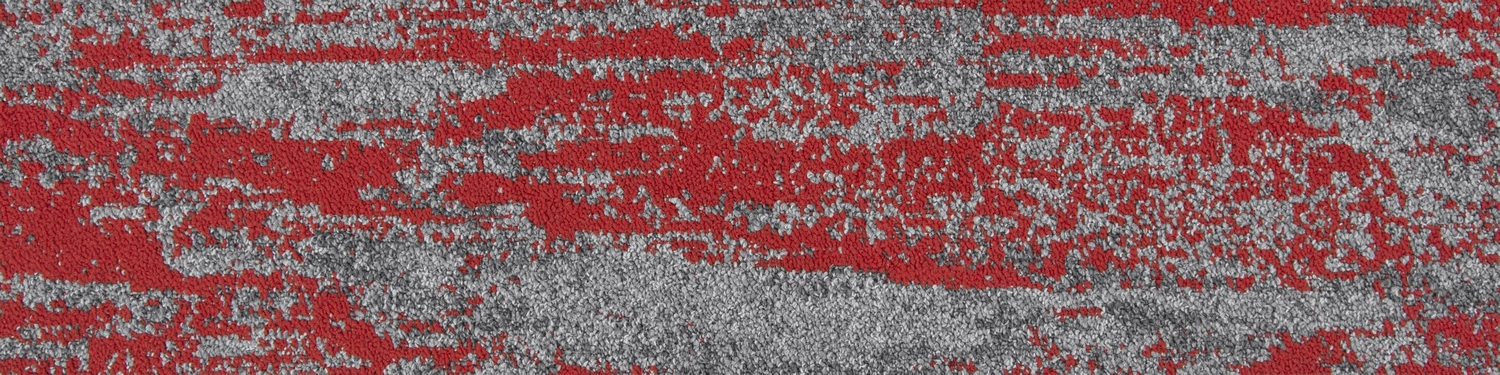

Coral Reef C 86807A

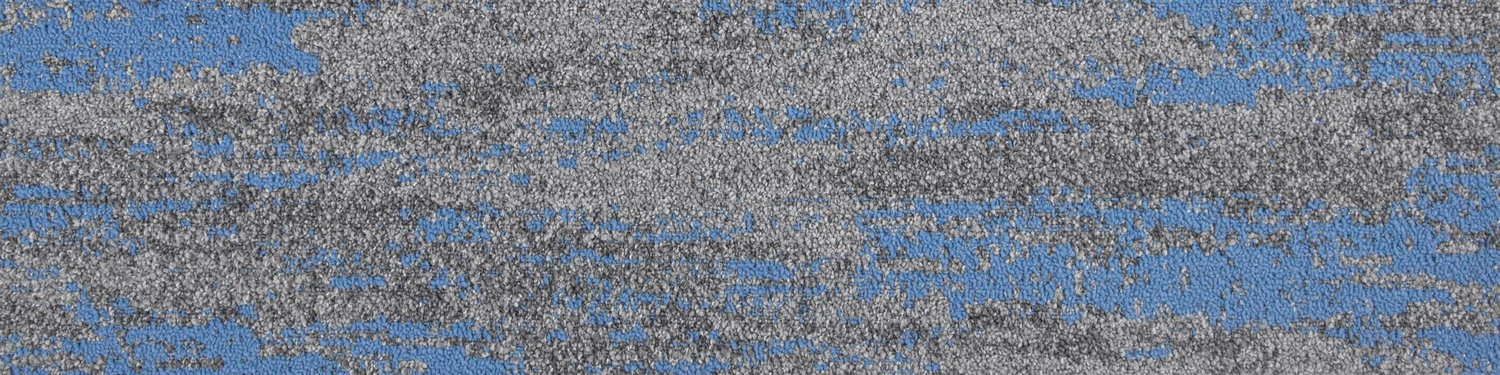

Coral Reef C 86808A

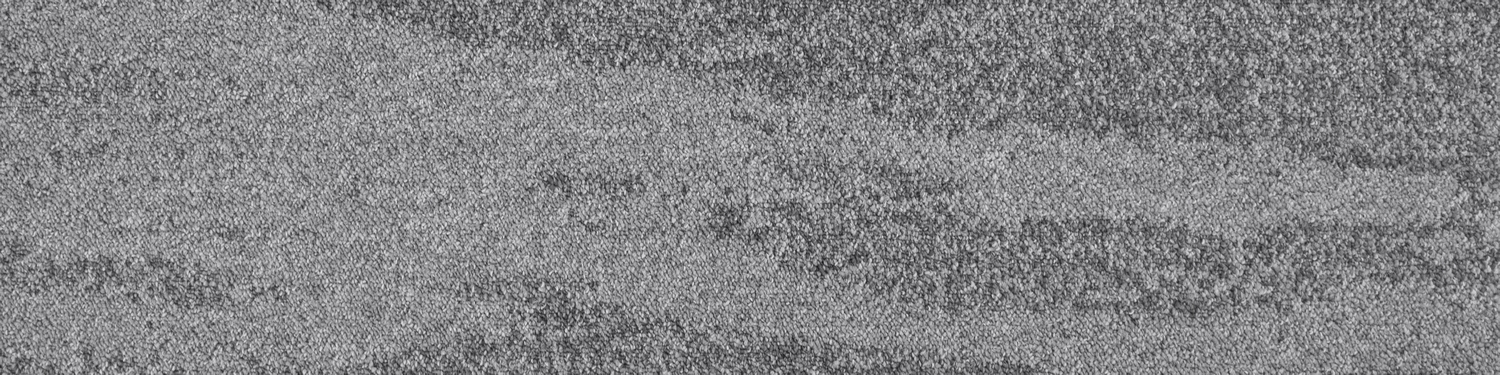

Coral Reef C 86809A

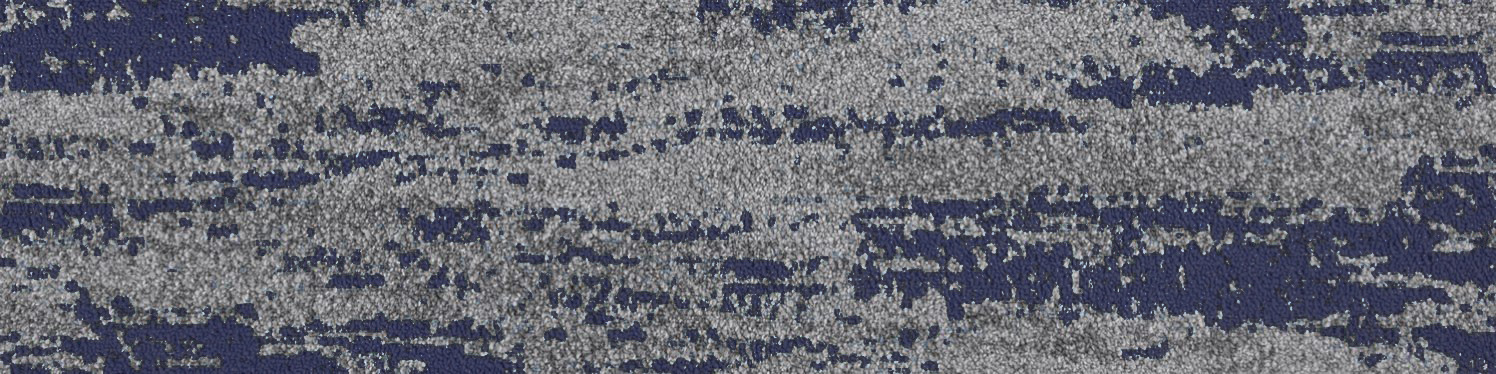

Coral Reef C 86810A

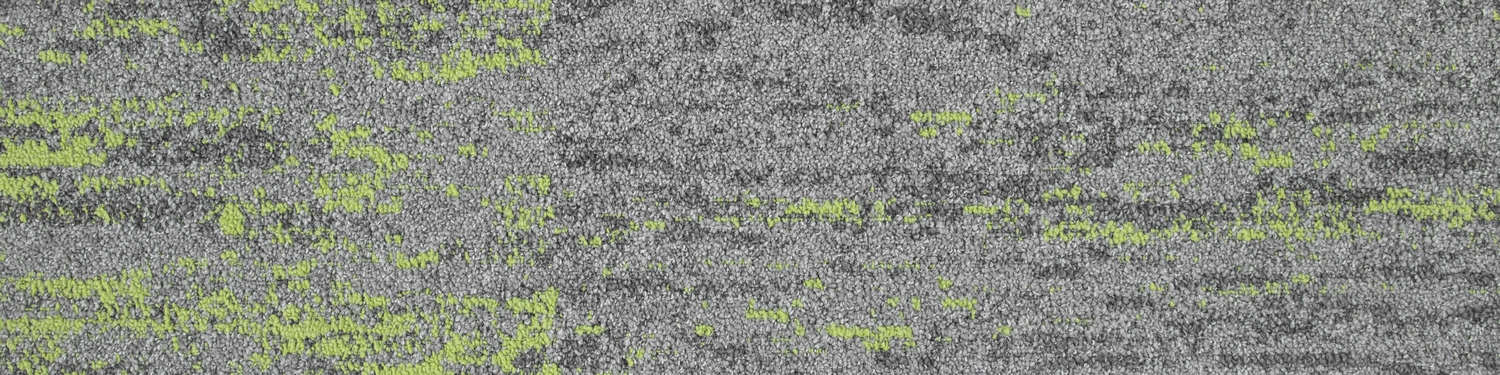

Coral Reef C 86801B

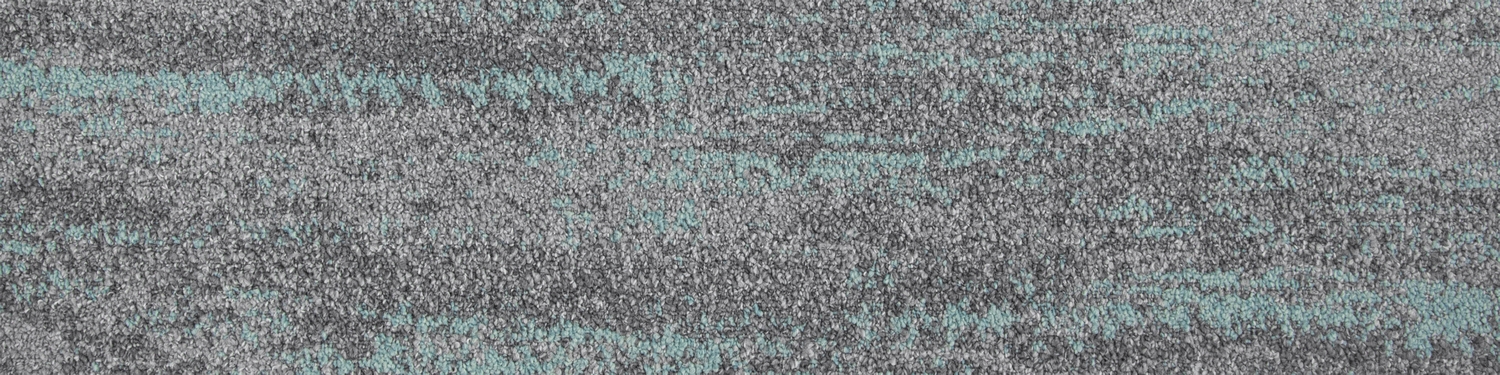

Coral Reef C 86802B

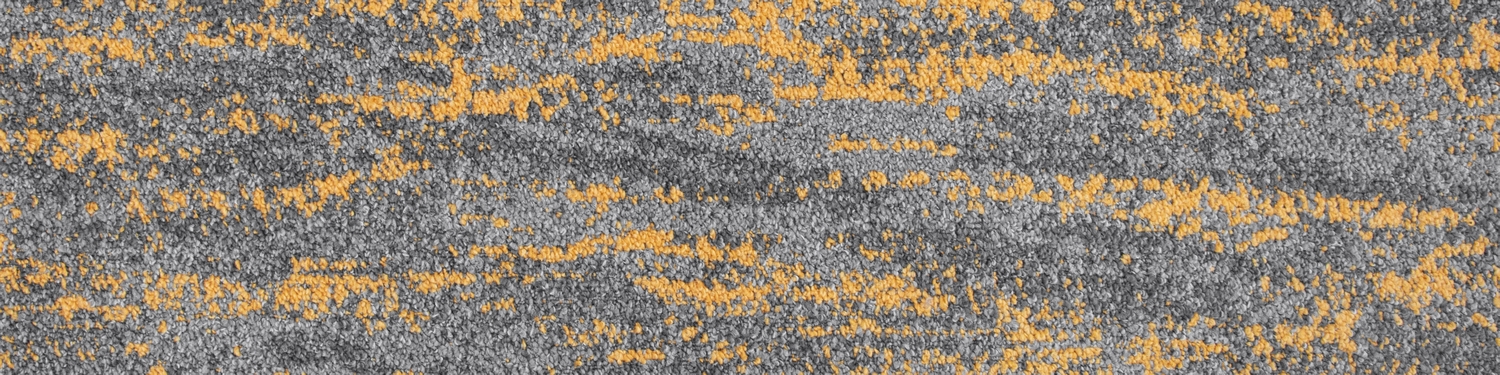

Coral Reef C 86803B

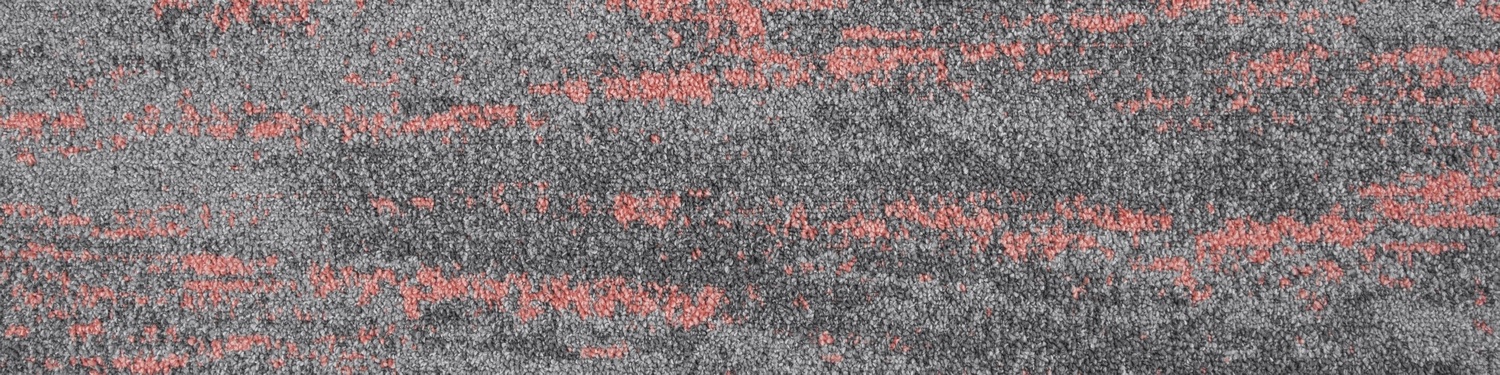

Coral Reef C 86804B

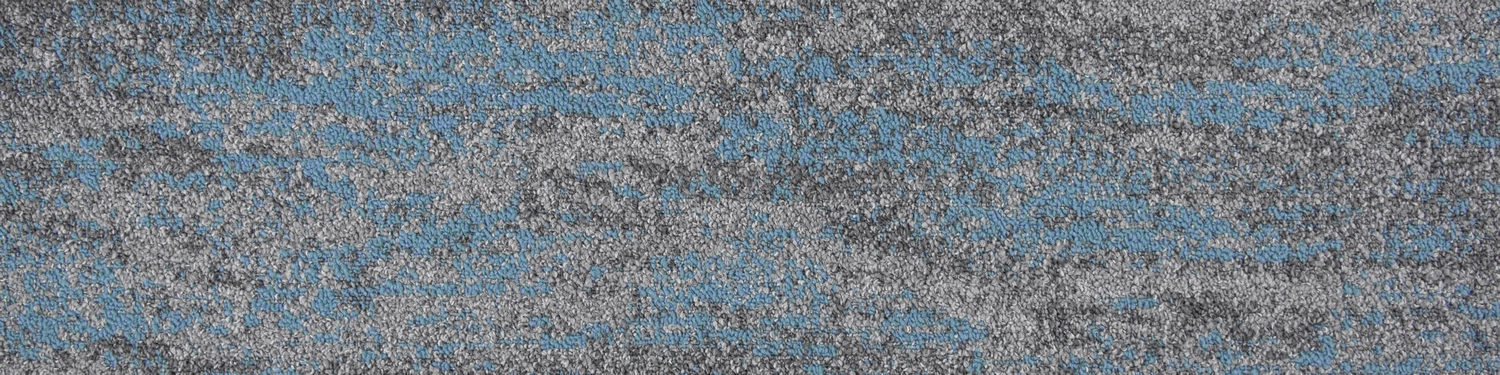

Coral Reef C 86805B

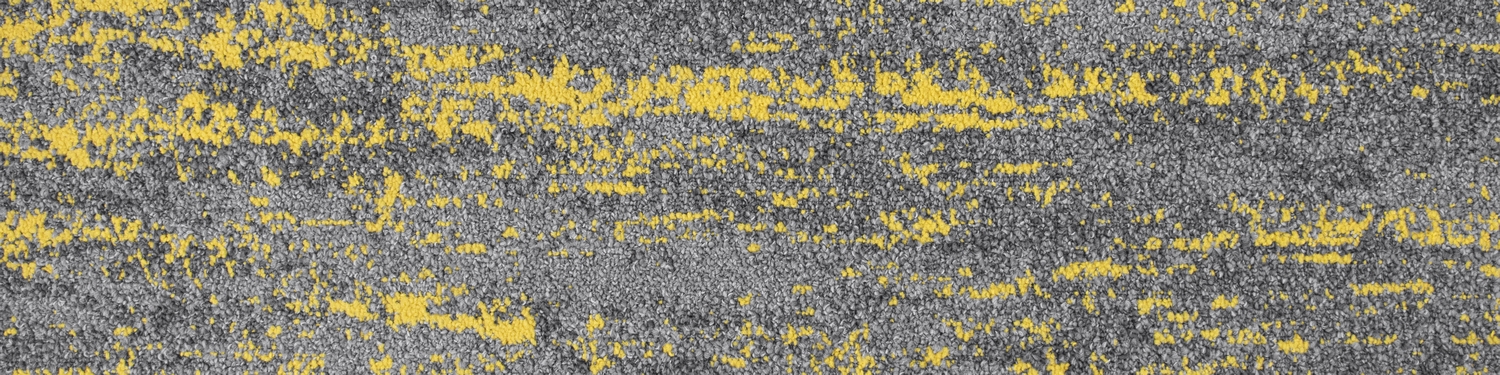

Coral Reef C 86806B

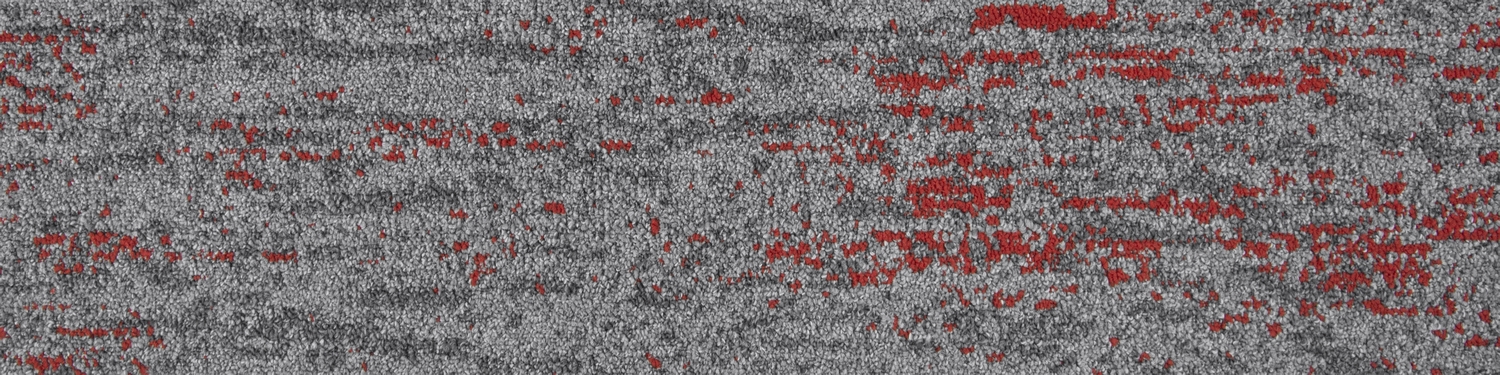

Coral Reef C 86807B

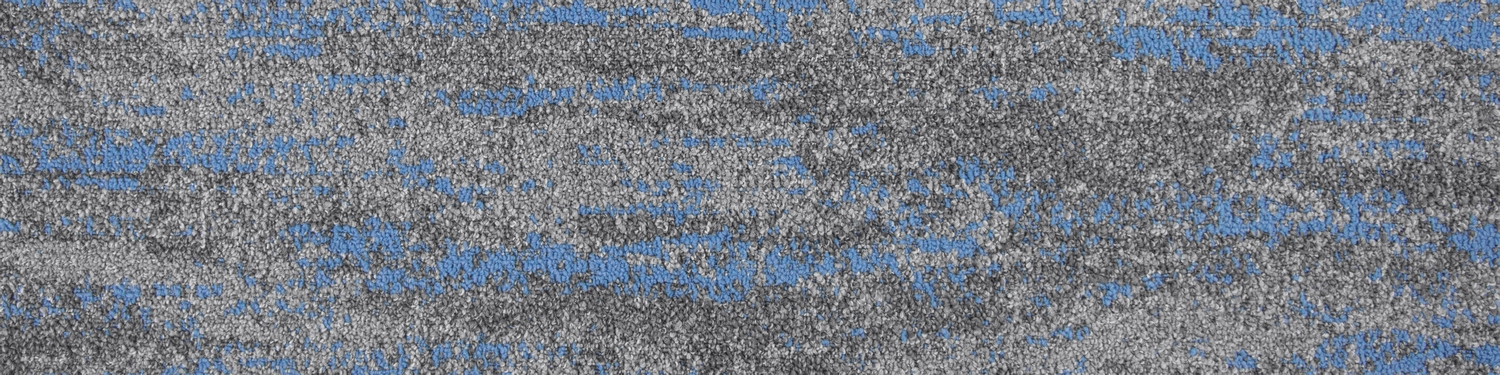

Coral Reef C 86808B
Coral Reef C 86809B

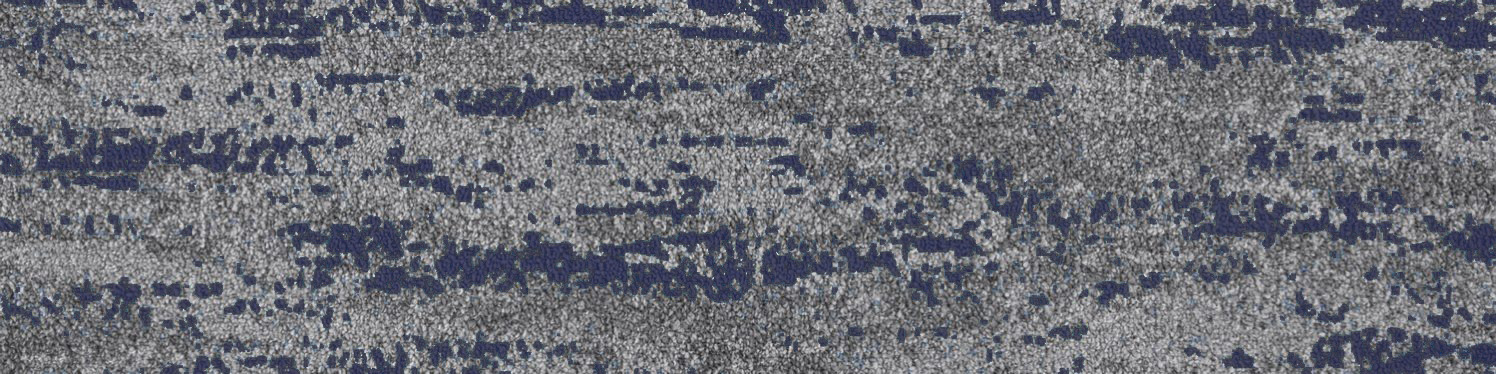

Coral Reef C 86810B

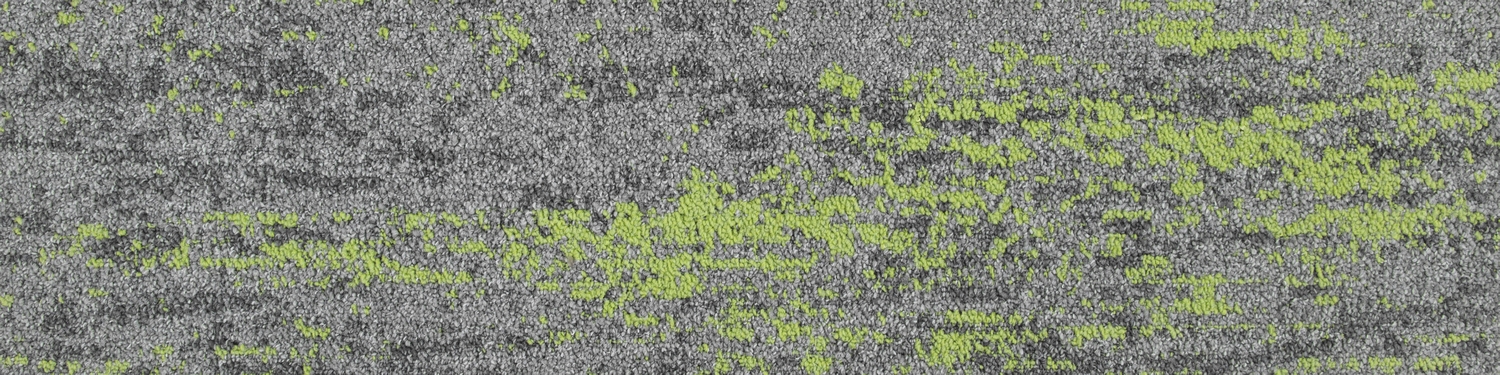

Coral Reef C 86801C

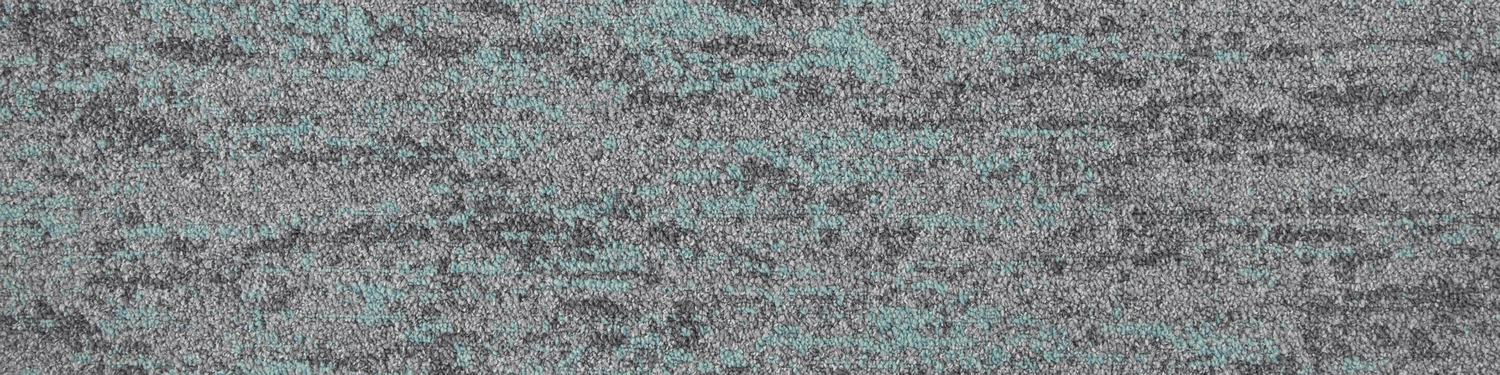

Coral Reef C 86802C

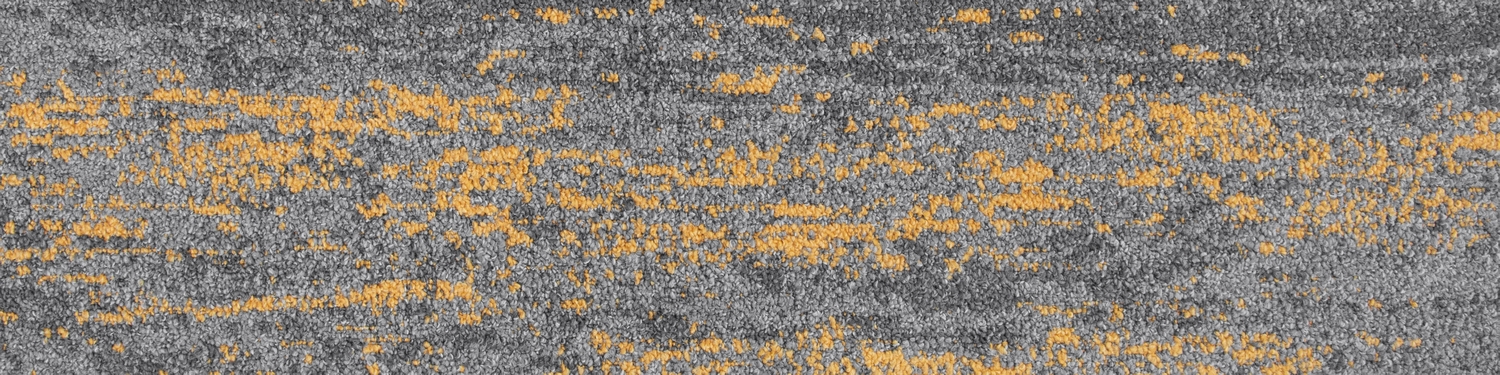

Coral Reef C 86803C

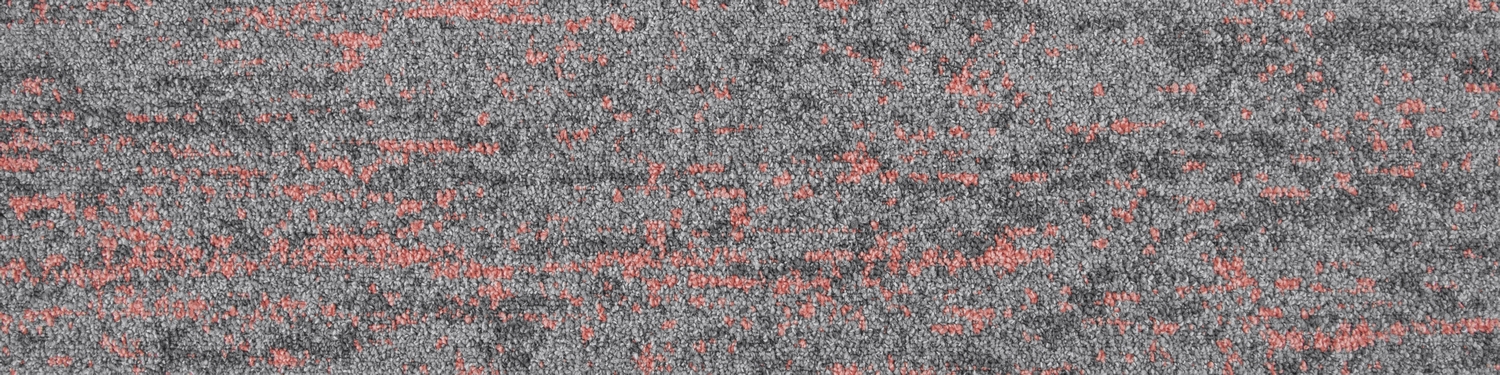

Coral Reef C 86804C

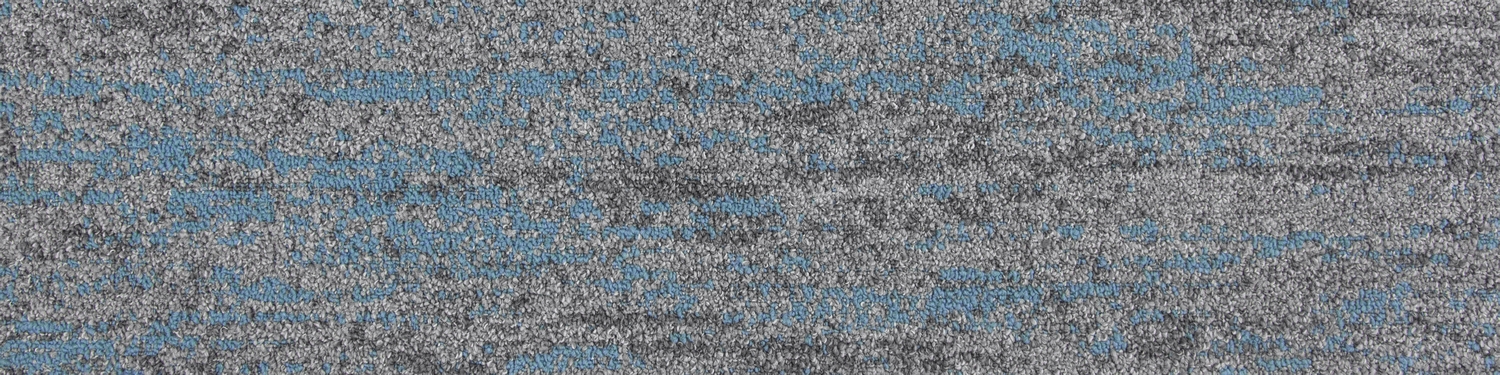

Coral Reef C 86805C

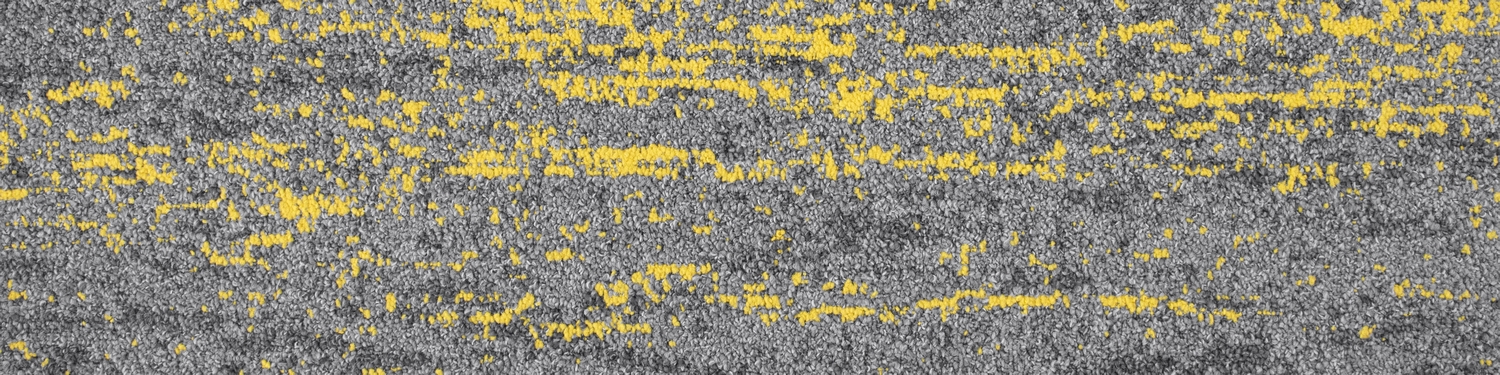

Coral Reef C 86806C
Coral Reef C 86807C

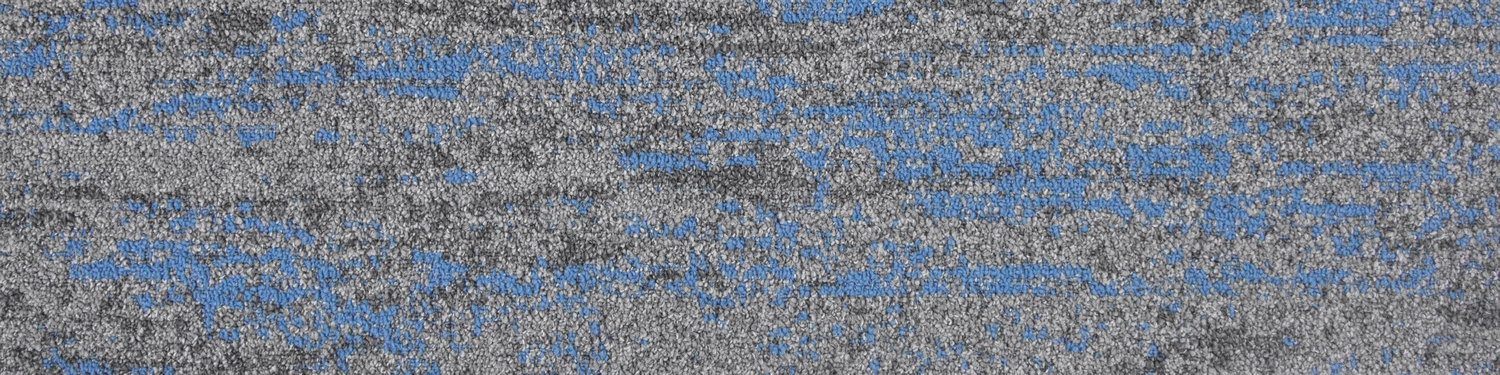

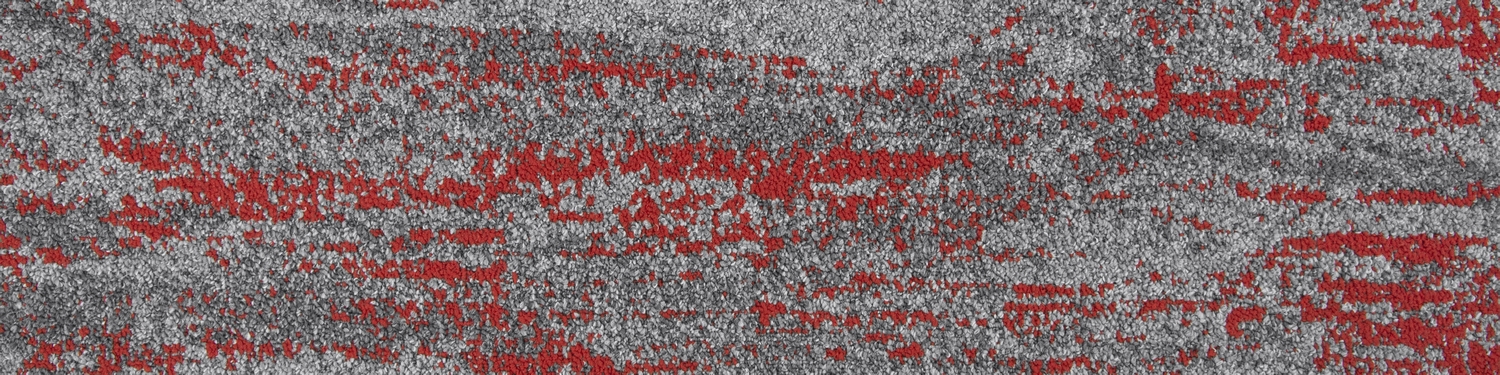

Coral Reef C 86808C

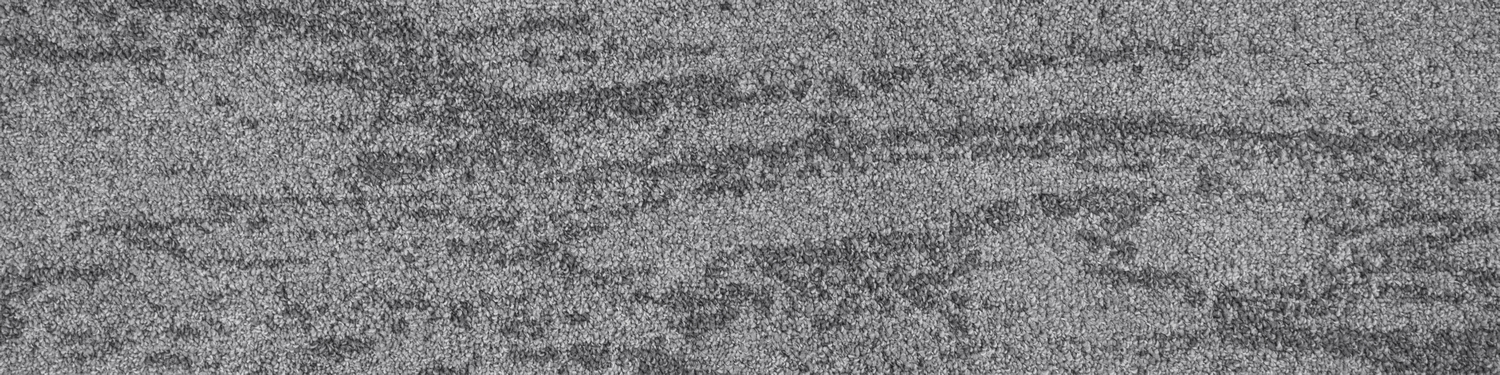

Coral Reef C 86809C

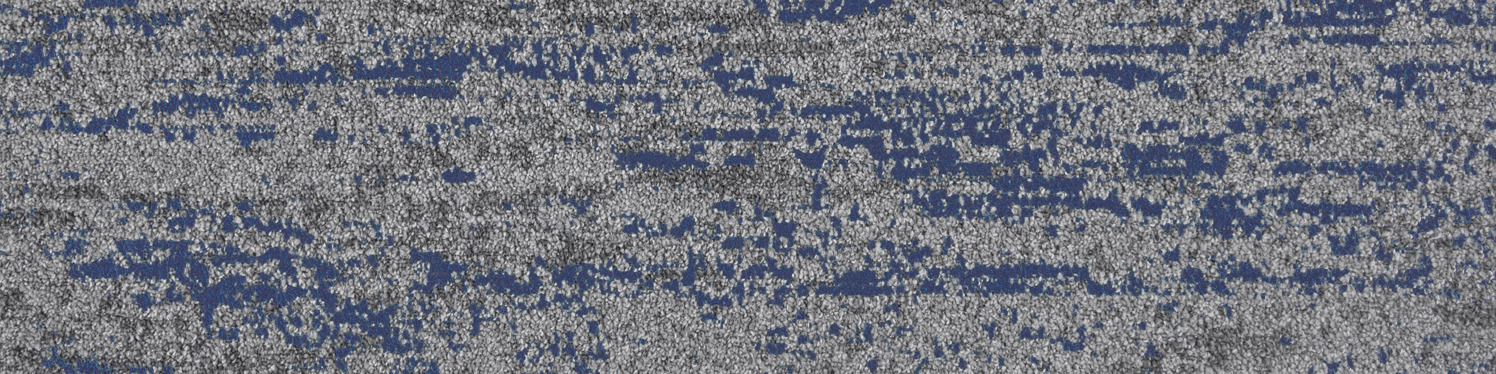

Coral Reef C 86810C
Coral Reef C 86801D

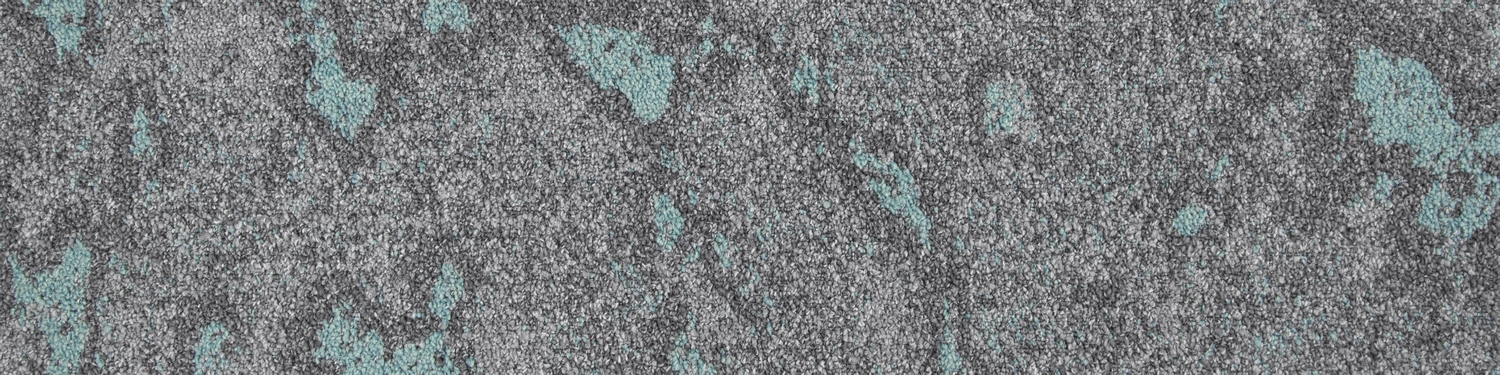

Coral Reef C 86802D

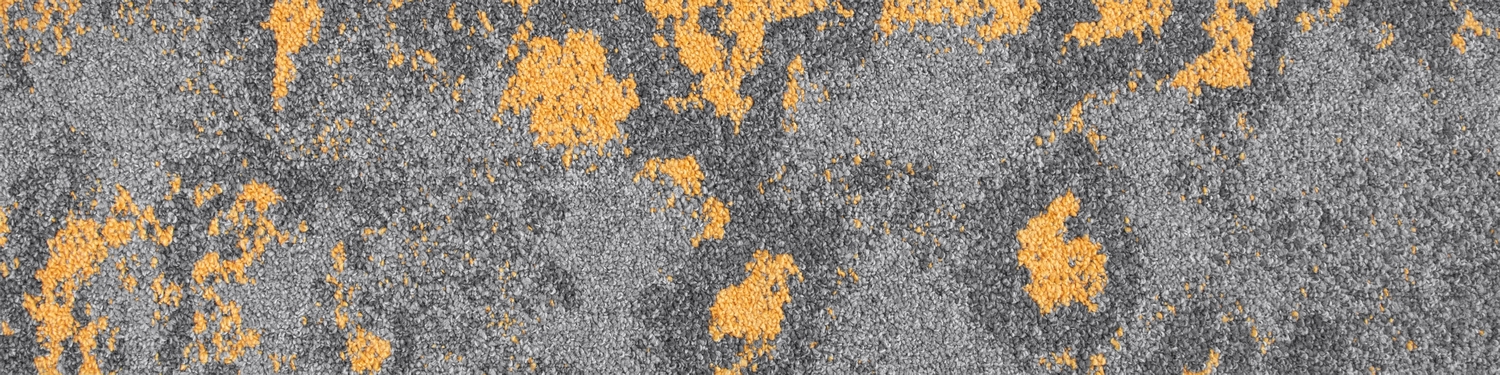

Coral Reef C 86803D

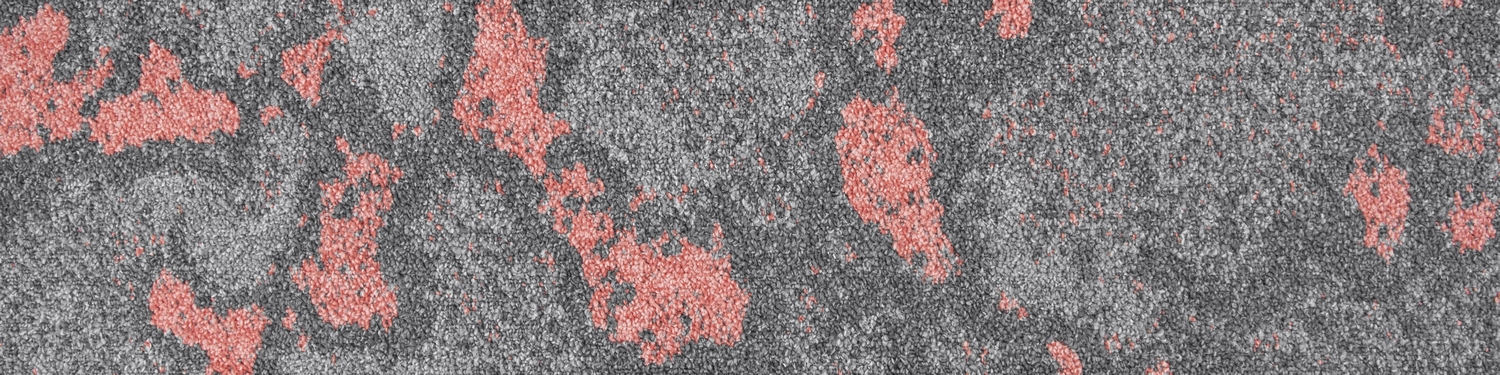

Coral Reef C 86804D

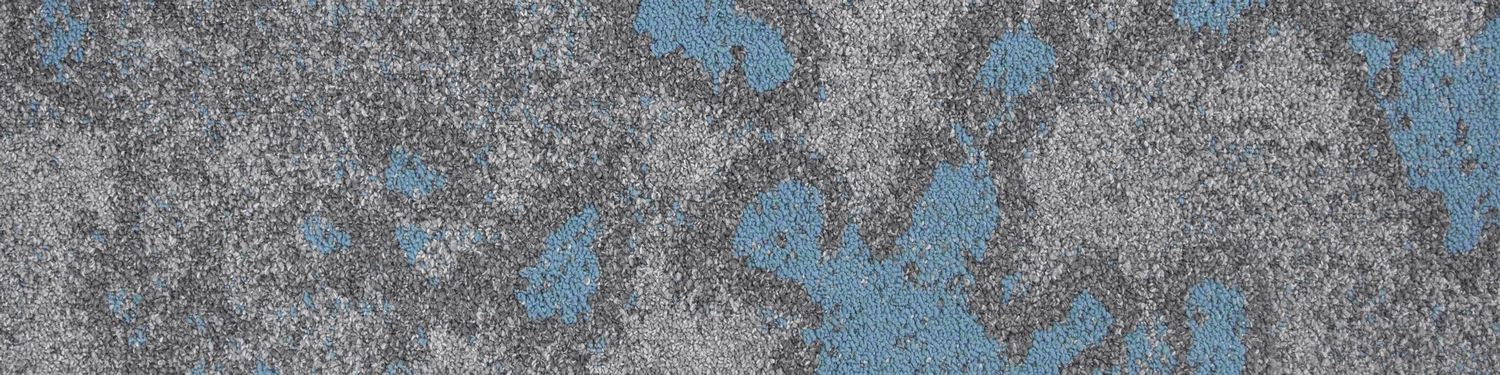

Coral Reef C 86805D

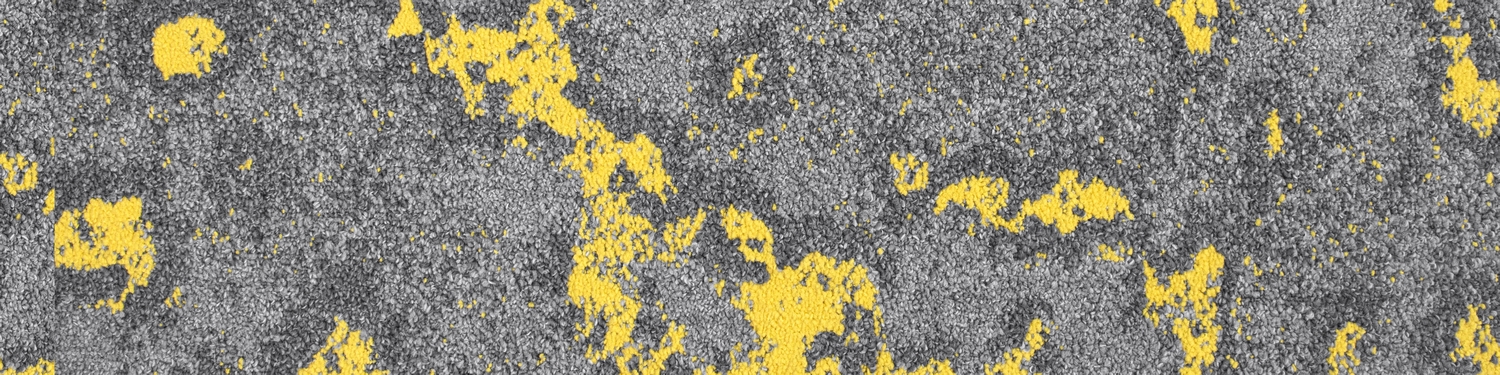

Coral Reef C 86806D

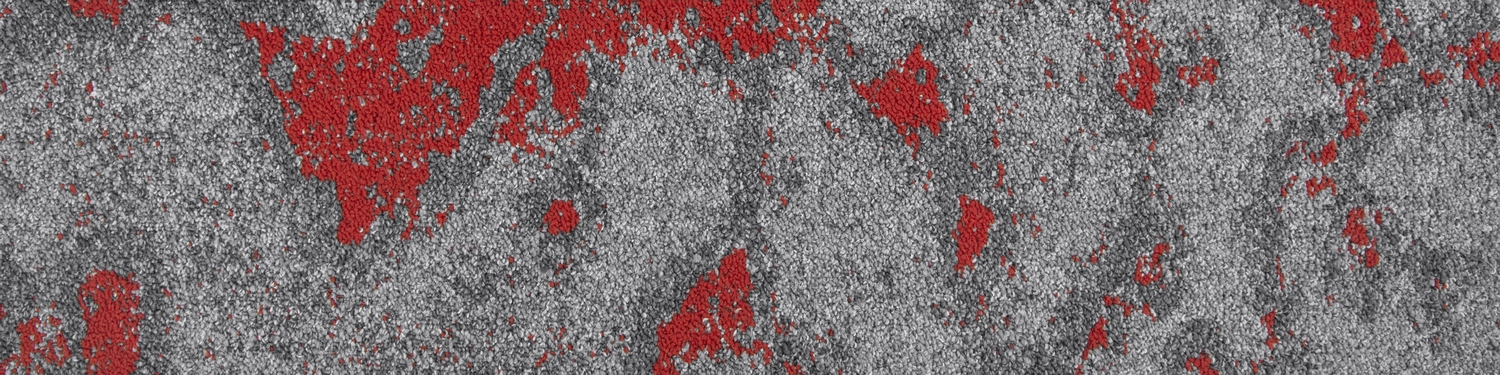

Coral Reef C 86807D

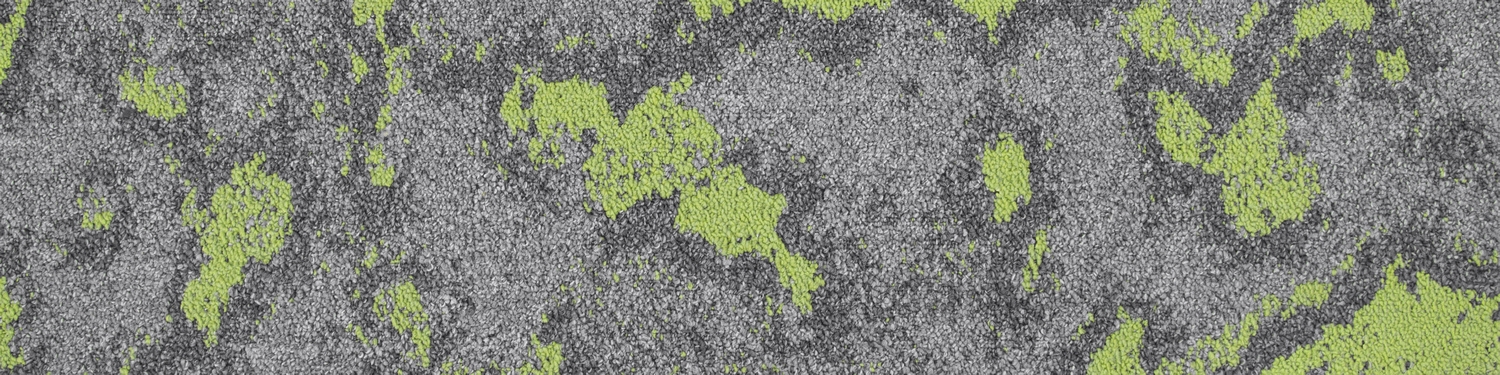

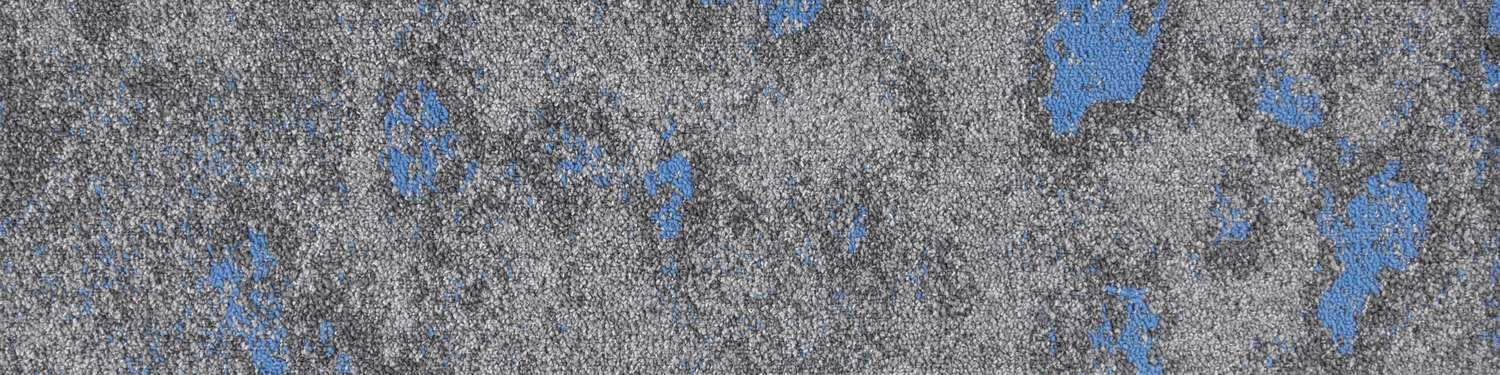

Coral Reef C 86808D

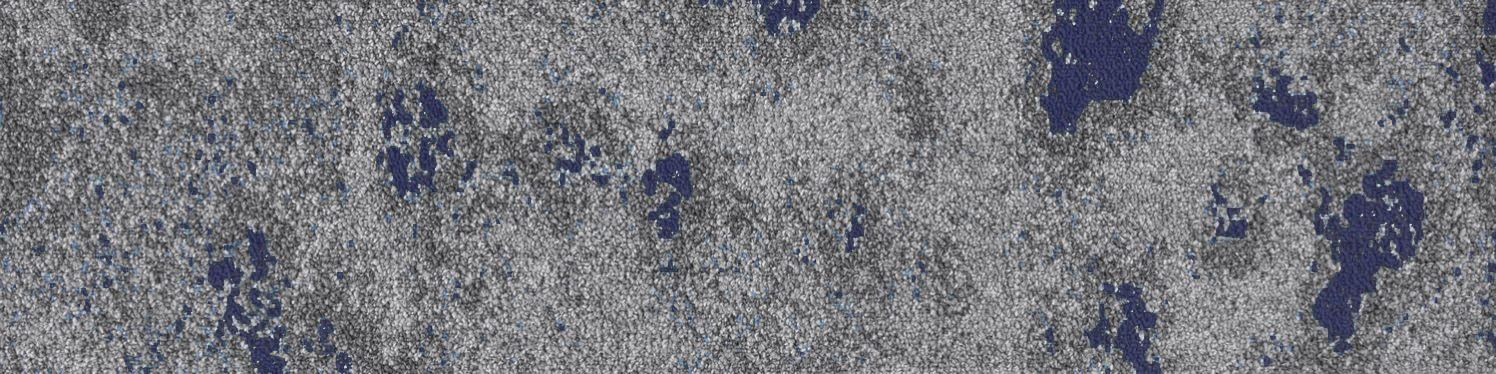

Coral Reef C 86810D
CONSTRUCTION Tufted multi-level loop Pile Colour Point
PILE FIBRE 100% Recycled Nylon 6
DYED METHOD Solution Dyed
TUFTING GAUGE 1/10” Inch
PILE WEIGHT 800gm/sqm (24oz/yd2)
PILE HEIGHT 6.5mm
PRIMARY BACKING Non- Woven Polyester
BACKING STRUCTURE Soft Back Deluxe. Acoustic Cushion 4mm
BACKING OPTIONS AVAILABLE Soft Back Lite (Made to Order) - Consult our representative
TILE SIZE 250mm x 1000mm
CASTOR CHAIR RATING BS EN 985, Passes >2.4 Continuous use (Under-chair mats recommended)
THERMAL RESISTANCE R Value = 0.15(m2K/W)
ELECTROSTATIC PROPERTIES CNS 13595 10 ≤2.0KV 20% R.H.at 70 F
PERFORMANCE
WEAR CLASSIFICATION
Contract Extra Heavy Duty Label
No
ENVIRONMENTAL CERTIFICATION
ACCS ECS Level 4
GREEN STAR LEVEL A
Min 7 Credit points
NATIONAL DISABILITY
Compliant
FLAMMABILITY
HOT METAL NUT
BS4790: Hot Metal Nut, Method 1
Pass
RADIANT PANEL TEST
ASTM E648, Class 1
SMOKE DENSITY
370 %. min
RADIANT HEAT SOURCE
AS ISO 9239.1.2003 CHF 4.9K/W/
M2
ACOUSTIC BEHAVIOUR
ACOUSTIC WEIGHTED ABSORPTION COEFFICIENT
EN ISO 34 and EN ISO 11654:
αw=0.41(H)
WARRANTY
WEAR WARRANTY
15 Years Limited Wear Warranty
Ultraviolet resistance
Anti-Static
Reduced flammability
Wear resistance
Environmental
Long life-span
Dimensional stability
Anti-slip
Passed Various Tests
