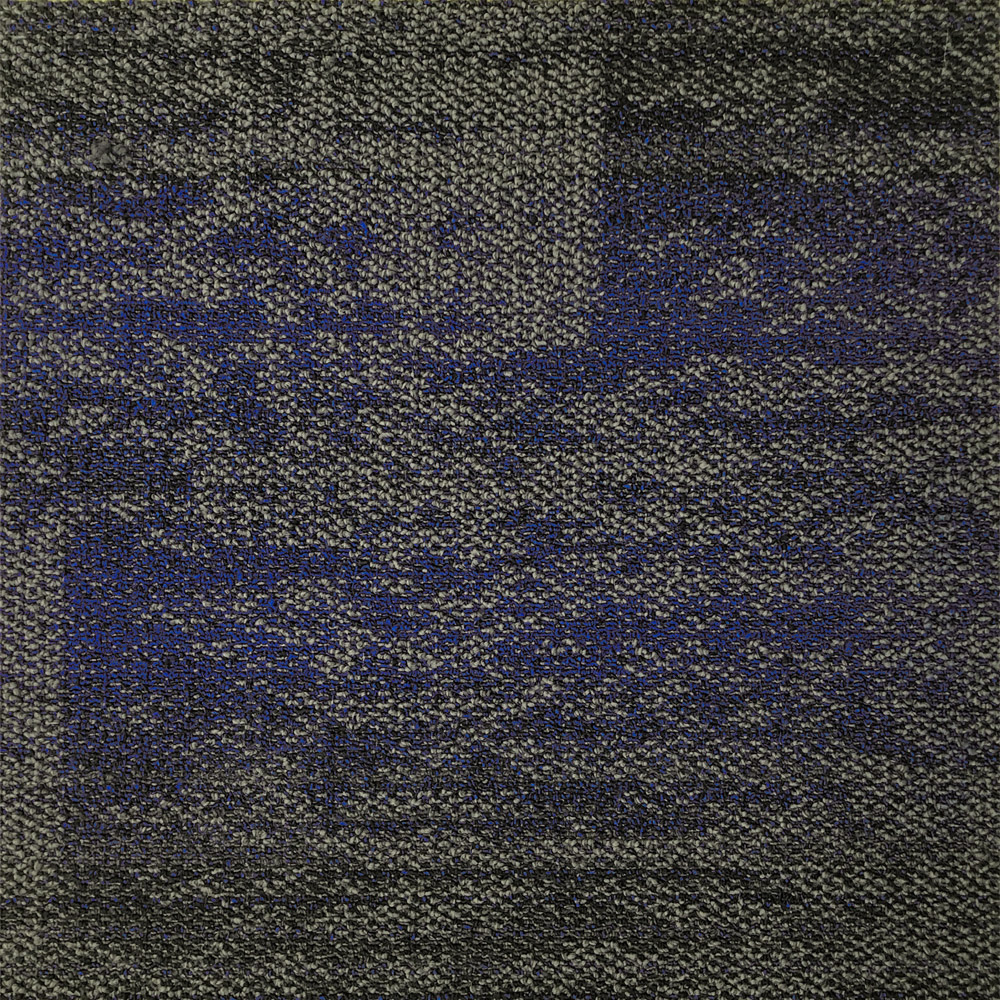

Colour Note EH01

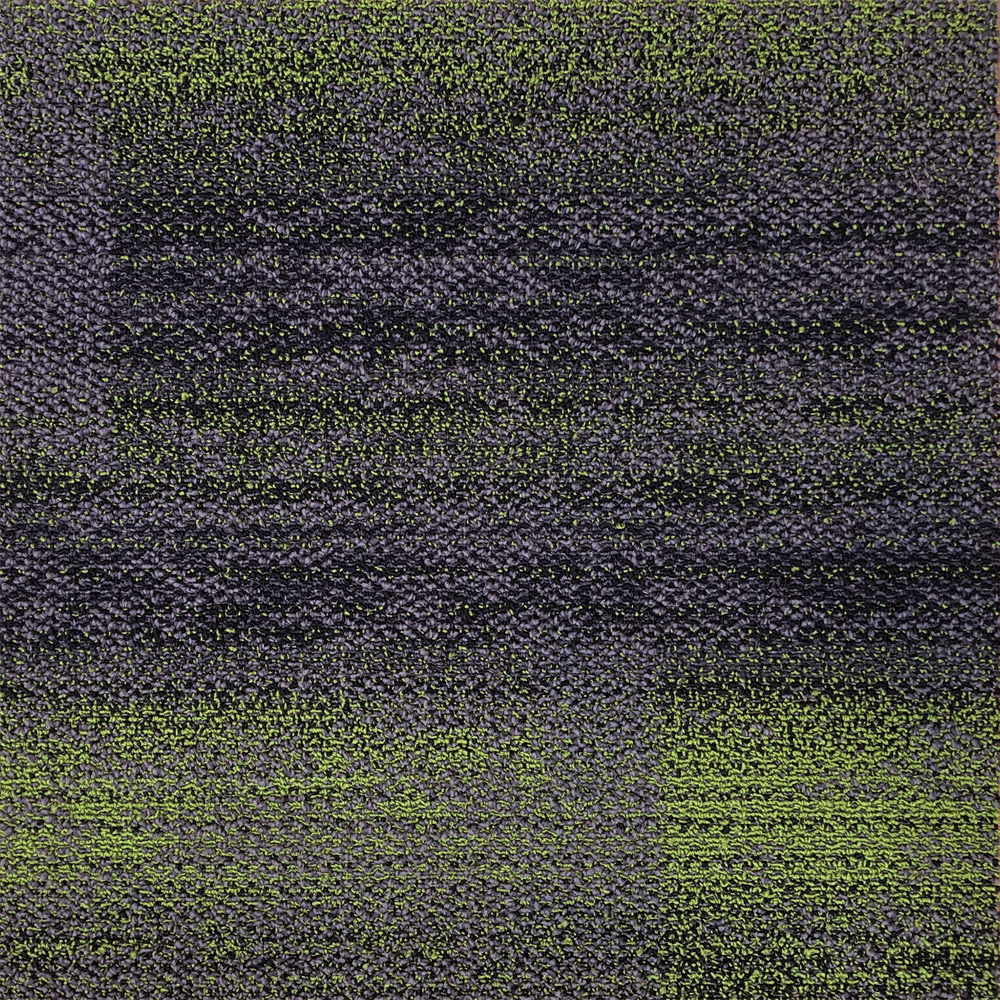

Colour Note EH02

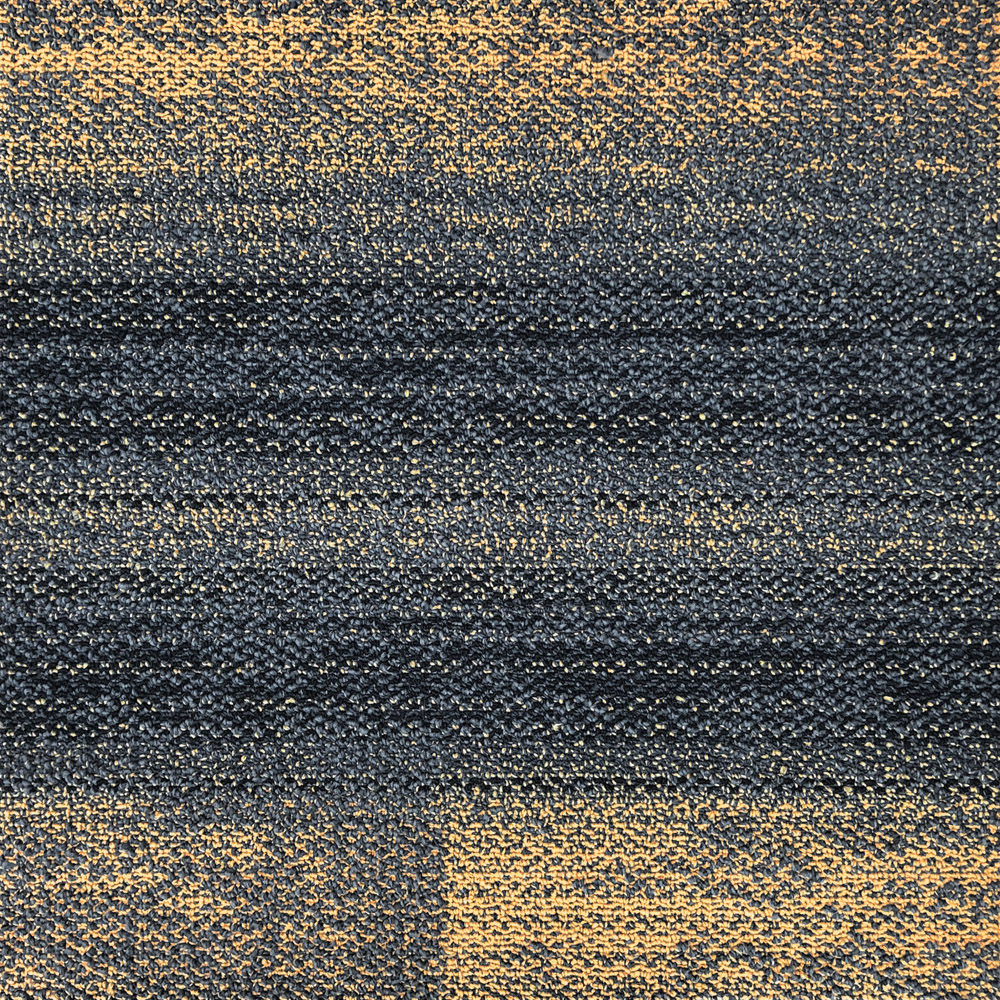

Colour Note EH03

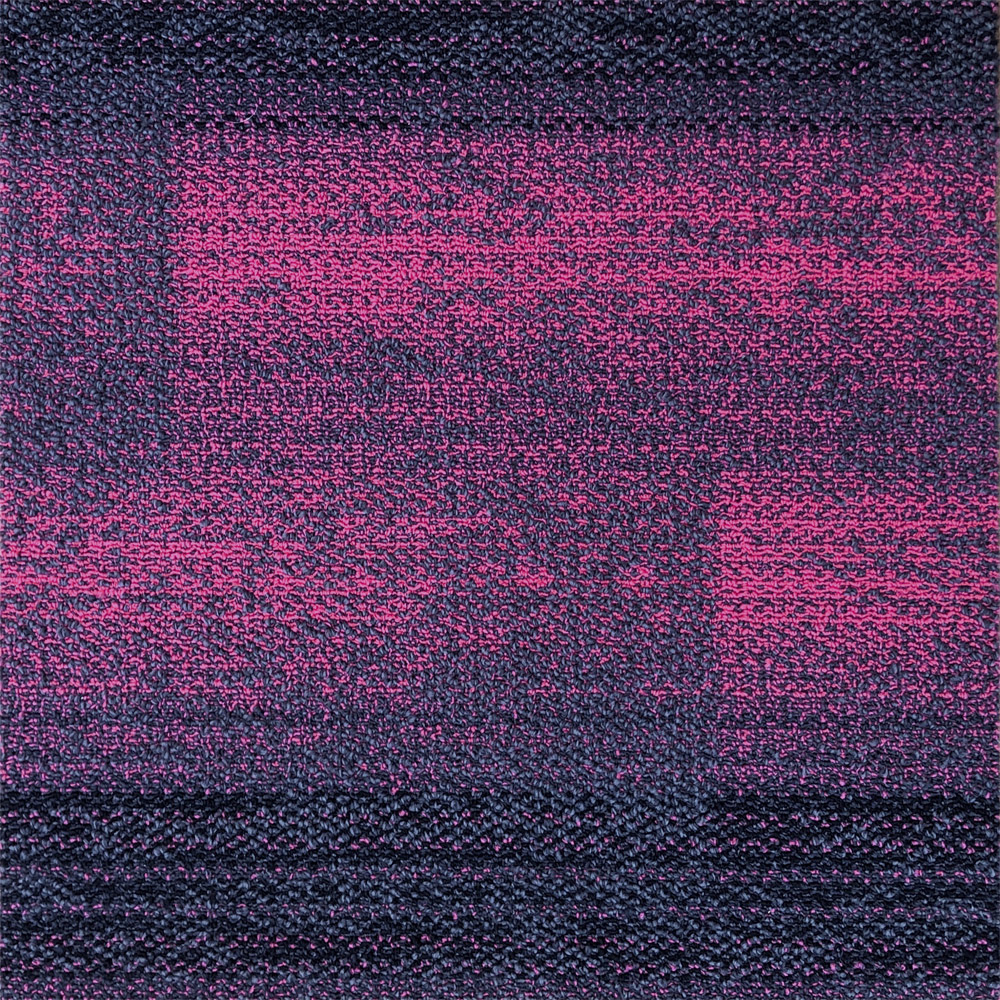

Colour Note EH04

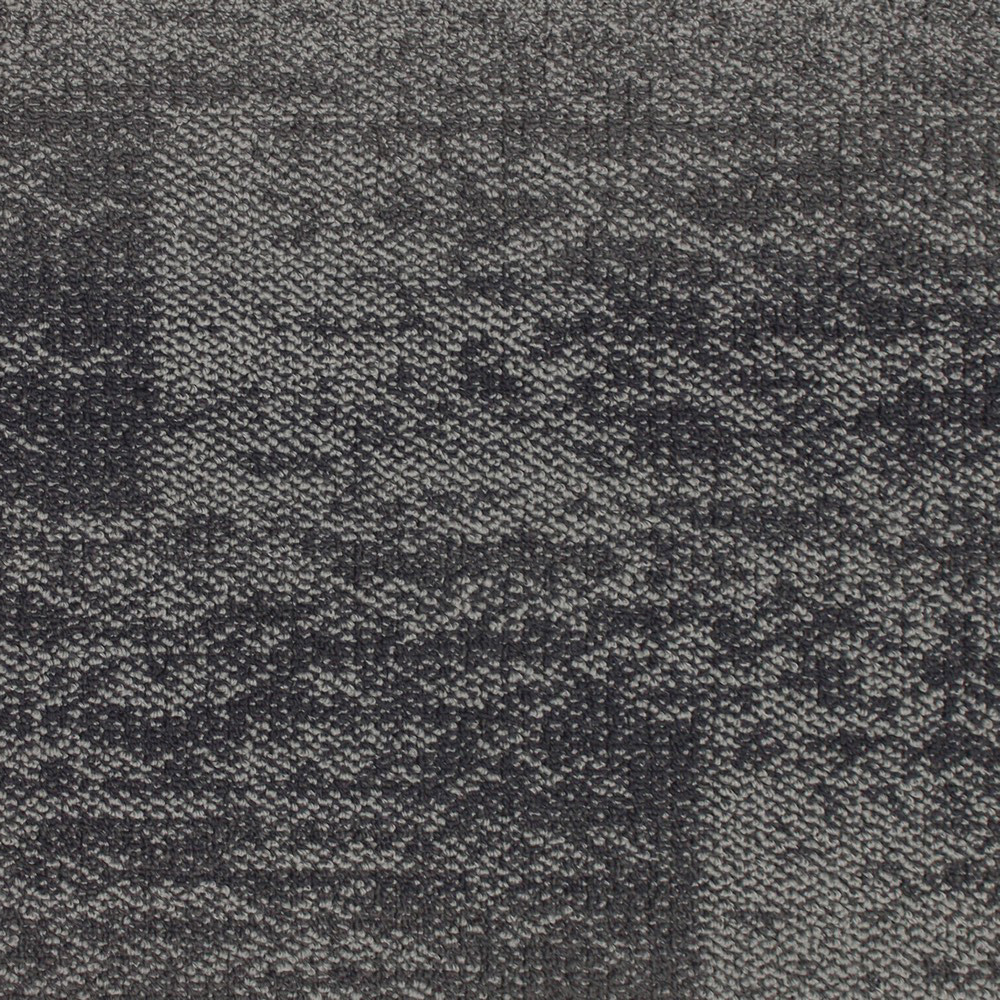

Colour Note EH05

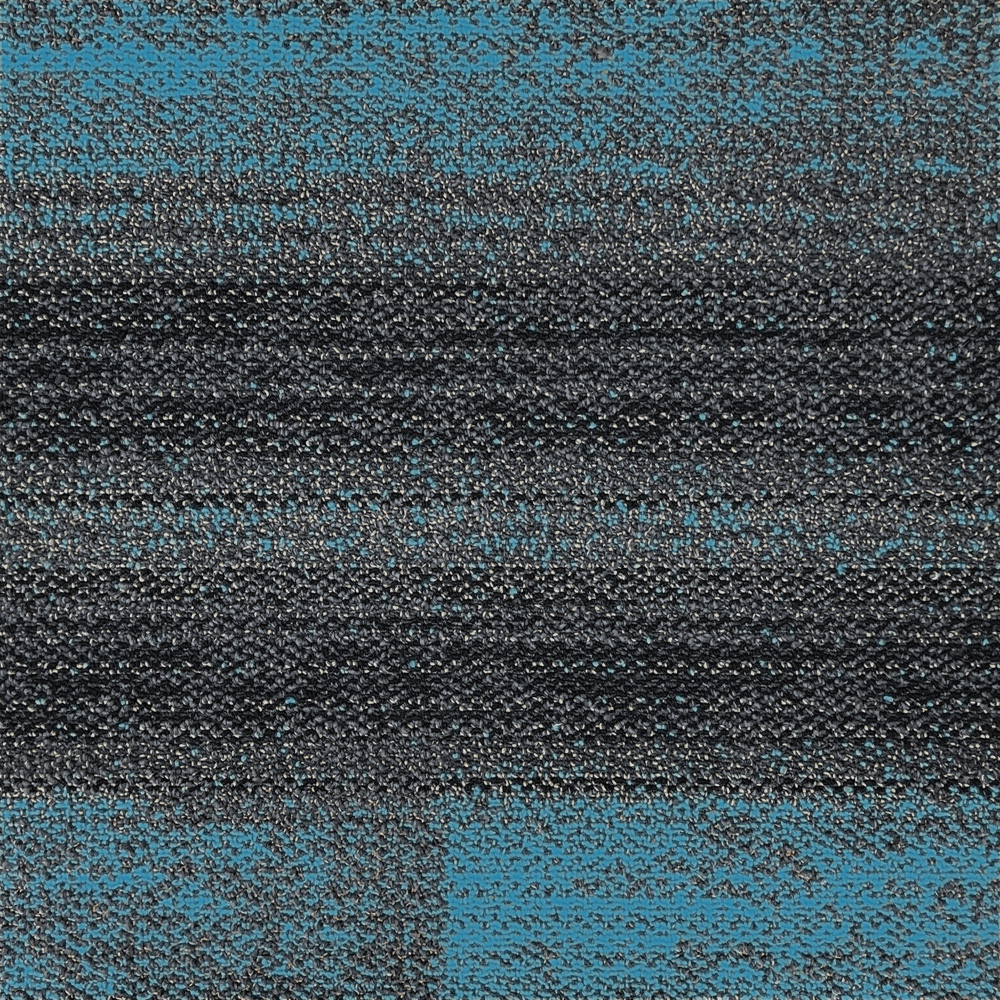

Colour Note EH06
CONSTRUCTION Tufted multi-level loop Pile
PILE FIBRE 100% Recycled Nylon 6
DYED METHOD Solution Dyed
TUFTING GAUGE 1/12”Inch
PILE WEIGHT 770gm/sqm (22.7oz/yd2)
PILE HEIGHT 4.5mm (0.177inch)
PRIMARY BACKING Non- Woven Polyester
BACKING STRUCTURE Soft Back Deluxe. Acoustic Cushion 4mm
BACKING OPTIONS AVAILABLE SoftBackLite/SoftBack Standard (Made to Order) - Consult our representative
TILE SIZE 500mm x 500mm
CASTOR CHAIR RATING BS EN 985, Passes >2.4 Continuous use (Under-chair mats recommended)
THERMAL RESISTANCE R Value = 0.15(m2K/W)
ELECTROSTATIC PROPERTIES CNS 13595 10 ≤2.0KV 20% R.H.at 70 F
ACOUSTIC BEHAVIOUR
ACOUSTIC WEIGHTED ABSORPTION COEFFICIENT
EN ISO 34 and EN ISO 11654:
αw=0.41(H)
FLAMMABILITY
HOT METAL NUT
BS4790: Hot Metal Nut, Method 1
Pass
RADIANT PANEL TEST
AS ISO 9239.1-2003
CHF Mean Ave. 4.8 kW/m2
SMOKE DENSITY VALUE
52 %. min
RADIANT HEAT SOURCE
AS ISO 9239.1.2003
HF30 5.2 kW/m2
PERFORMANCE
WEAR CLASSIFICATION
ACCS Contract Extra Heavy Duty-
Label No. 20148
ENVIRONMENTAL CERTIFICATION
ACCS ECS Level 4
GREEN STAR LEVEL A
Min 7 Credit points
NATIONAL DISABILITY
Compliant
SLIP RESISTANCE
SLIP RESISTANCE AS 4586-2003
P5
ACOUSTIC BEHAVIOR
ACOUSTIC WEIGHTED ABSORPTION COEFFICIENT
EN ISO 34 and EN ISO 11654: aw=0.41(H)
WARRANTY
WEAR WARRANTY
15 Years Limited Wear Warranty
ULTRA VIOLET RESISTANCE
Anti-Static
Reduced flammability
Wear resistance
Environmental
Long life-span
Dimensional stability
Anti-slip
Passed Various Tests
ASHLAR
